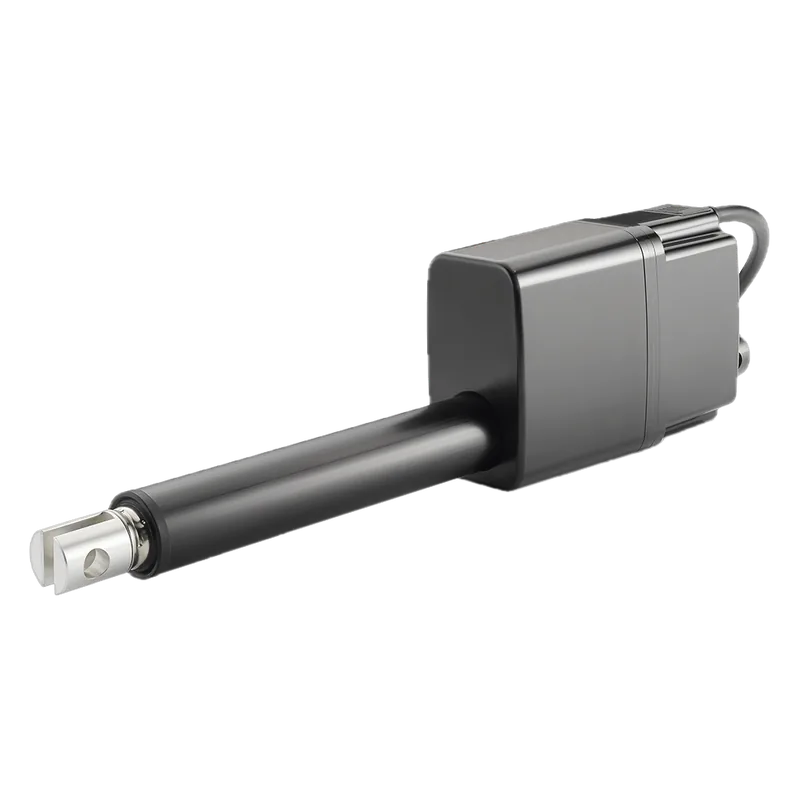

Thomson Electrak MD Linear Actuator, 24 V, 250 N, 100 mm
Thomson · MPN MD24A025-0100LXX2NNSD · Maglev ID ac-thomson-md24a025-0100
US Maker in United States, factory not confirmed unknown VERIFIED
Sealed (IP66 dynamic / IP69K static) 12-48 V acme-screw actuator with built-in electronics options (limit switches, CAN/J1939) for outdoor and mobile machines.
Specifications
| Stroke | 100 mm (50-300 mm range) |
|---|---|
| Max dynamic load | 250 N (A025 screw; A050/A100/A200 = 500/1000/2000 N) |
| Speed | 52 mm/s no load / 43.8 mm/s max load |
| Voltage | 24 VDC (18-32 V) |
| Mass | 1.2 kg at 100 mm stroke |
Who makes it
MakerThomson Industries (Regal Rexnord)
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Ordering-key suffix LXX2NNSD not decoded here; check Thomson ordering key in catalog. |
Equivalents from other makers
Sources
- https://s3.amazonaws.com/www.motionusa.com/nook/2026/MD_Actuators.pdfElectrak MD technical specs (load, speed, stroke, weight, ordering key)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
