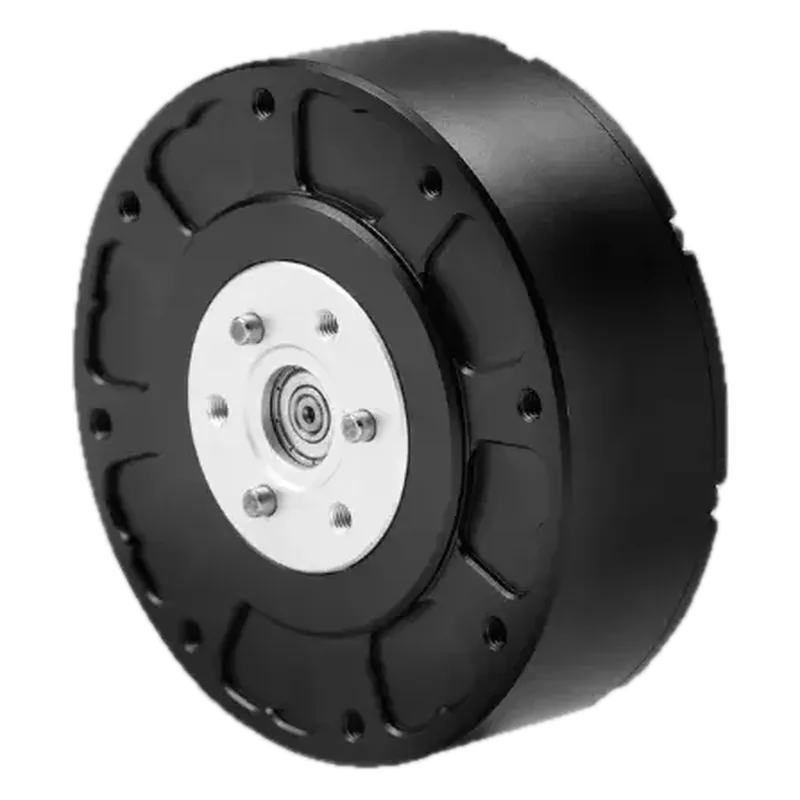

SteadyWin GIM8115-9 Joint Motor (48 V, GDS810 driver)
SteadyWin · MPN GIM8115-9 · Maglev ID ac-steadywin-gim8115-9
CN Maker in China, factory not confirmed unknown VERIFIED
9:1 planetary joint with steel gears and 15 arcmin backlash; four voltage/driver variants, IP54.
Specifications
| Peak torque | 46 N·m stall (48 V, Y, GDS810); no separate peak figure published |
|---|---|
| Rated torque | 13.8 N·m (48 V, GDS810) |
| Gear ratio | 9:1 planetary, steel gears |
| Voltage | 12-48 V range; 48 V variant |
| Mass | 705 g with driver (660 g without) |
| Interface | CAN |
| Backlash | 15 arcmin |
Who makes it
MakerJiangxi SteadyWin Automation (江西伺泰威; English site Skyline Innovation Co., Limited)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | 46 N·m is a stall figure; manufacturer noise claim <60 dB lacks test conditions. |
Equivalents from other makers
Sources
- https://www.steadywin.cn/en/pd.jsp?fromColId=0&id=18variant spec table; no price
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
