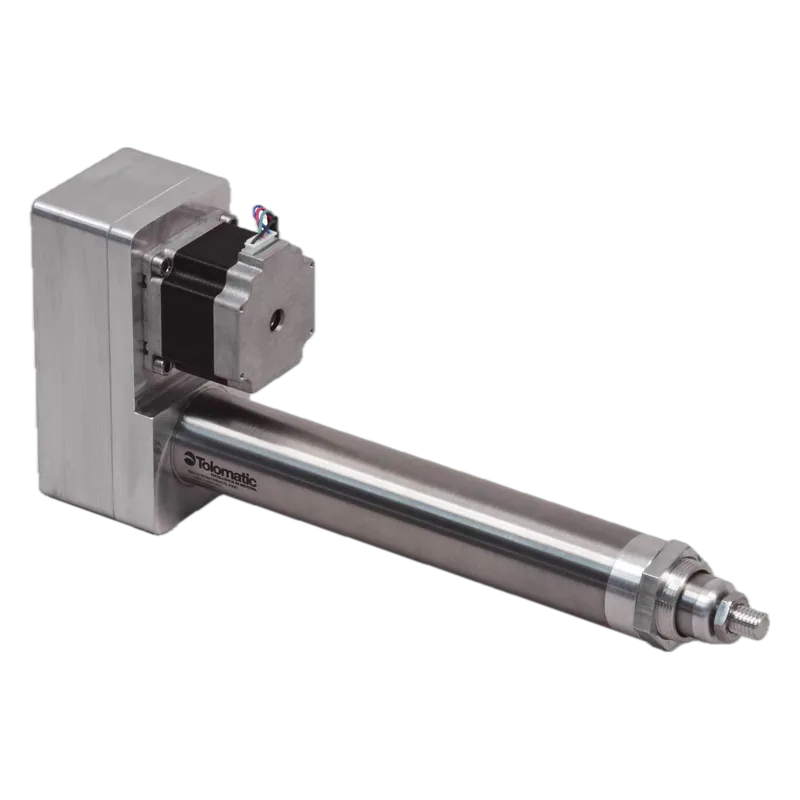

Tolomatic ERD 15 Electric Rod Actuator
Tolomatic · MPN ERD15 (screw/stroke/motor configured) · Maglev ID ac-tolomatic-erd15
US Maker in United States, factory not confirmed unknown VERIFIED
Low-cost electric cylinder to replace pneumatics, motor-agnostic (NEMA/metric stepper or servo); for fixtures and test rigs, not side loads.
Specifications
| Stroke | up to 609 mm (24 in); longer on request |
|---|---|
| Max force | 890 N (200 lbf) |
| Max speed | 1,016 mm/s (40 in/s) spec max; packaged units 275-550 mm/s |
| Voltage | Depends on chosen motor; packages with 75 VDC supply offered |
Who makes it
MakerTolomatic, Inc.
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.tolomatic.com/products/product-details/erd-low-cost-electric-cylinders-for-pneumatic-cylinder-replacement/ERD15 specs + USD listing prices
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
