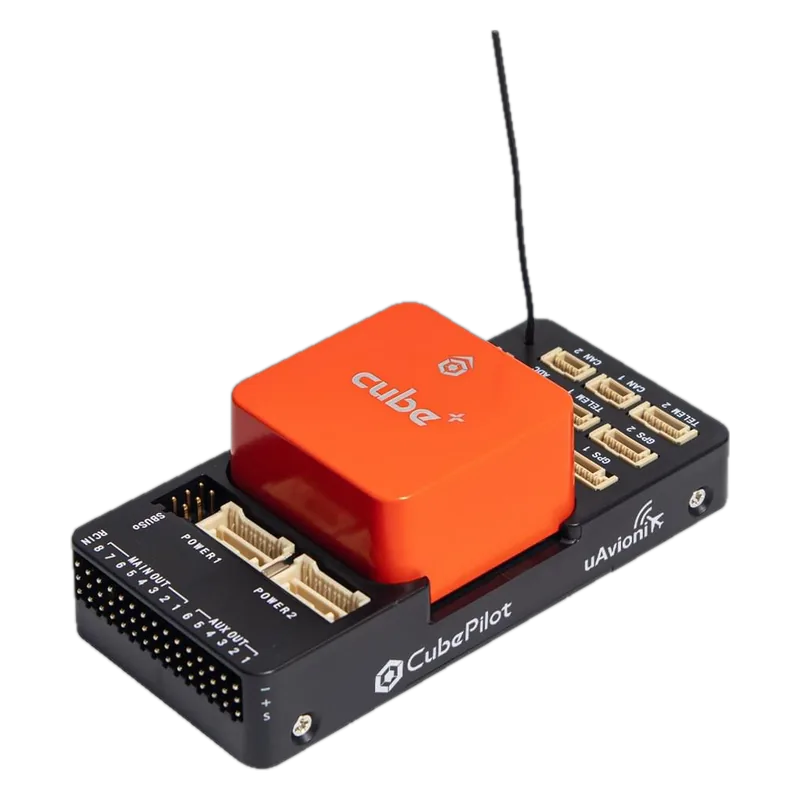

CubePilot Cube Orange+ (Standard Set, ADS-B carrier)
CubePilot · Maglev ID dr-cubepilot-cube-orange-plus
?? Origin not confirmed Blue UAS VERIFIED
Cube-format autopilot module on a carrier board with triple IMUs; Blue UAS Framework listed and widely used on ArduPilot commercial aircraft.
Specifications
| Processor | STM32H757 dual-core (Cortex-M7 + M4), STM32F103 failsafe co-processor |
|---|---|
| IMUs | ICM42688p + ICM20948 + ICM20649 |
| Weight | unknown |
| Interfaces | CAN FD, UART, I2C, SPI, PWM via carrier board; ADS-B receiver on standard-set carrier |
Who makes it
MakerCubePilot
Based inunknown
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | listed |
| FCC | n/a |
| Notes | Listed on DCMA Blue UAS list as CubePilot 'Cube Orange+' (Flight Controller, added 2024-05-06). Country of manufacture not stated on pages opened (retailers variously cite Taiwan; directories place CubePilot Pty Ltd in Victoria, Australia - unverified). RobotShop price includes US tariffs, backorder. |
Equivalents from other makers
Works with
Sources
- https://bluelist.dcma.mil/gsp?id=gsp_indexDCMA Blue UAS list (Cleared List + Framework, transitioned from DIU), 'Blue List Products' table read 2026-10-29: entry 'CubePilot / Cube Orange+'
- https://docs.px4.io/main/en/flight_controller/cubepilot_cube_orangeplus.htmlprocessor + sensors (PX4 docs)
- https://www.robotshop.com/products/cube-orange-standard-setdistributor price, contents
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
