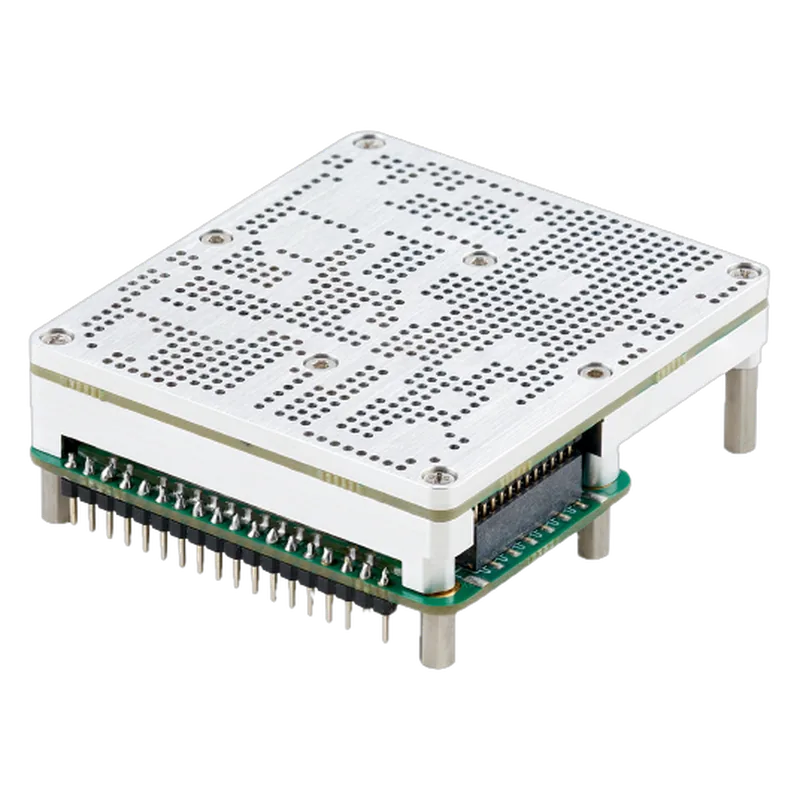

Doodle Labs Mini Mesh Rider Radio
Doodle Labs · Maglev ID dr-doodlelabs-mini-mesh-rider
?? Origin not confirmed NDAA VERIFIED
34 g MIMO mesh IP radio (multi-band options 900 MHz-5.7 GHz) for long-range HD video and C2 swarms.
Specifications
| Band | Options: 900 MHz + 2.4 GHz, M1-M6, L+S, quad band, 2.4 GHz single band |
|---|---|
| Range | 50+ km (product page; spec CSV says 80+ km), conditions not given |
| Throughput | 80 Mbps |
| Weight | 34 g |
| Max Tx power | 1.6 W (32 dBm) |
Who makes it
MakerDoodle Labs
Based inunknown
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
7.5%
TW
0%
VN
0%
IN
0%
JP
0%
KR
0%
DE
0%
MX
0%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8517.62.00.90 typical, not a ruling |
|---|---|
| NDAA | compliant |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Doodle Labs products page: 'non-ITAR, NDAA, and Blue UAS-compliant supply chain' (company-level). DCMA list has 'mini-OEM Helix Mesh Rider', 'mini-OEM Dual-Band Mesh Rider' and 'Mini-OEM, Doodle Helix Mesh Rider' entries; exact mapping to this 'Mini' SKU family not confirmed, so left unknown. Offices in Austin, TX and Singapore. Price: contact sales. |
Equivalents from other makers
Sources
- https://doodlelabs.com/products/radios/mini/bands, range
- https://doodlelabs.com/specifications/mini.csvspec file
- https://doodlelabs.com/products/NDAA supply-chain statement
- https://bluelist.dcma.mil/gsp?id=gsp_indexDCMA Blue UAS list (Cleared List + Framework, transitioned from DIU), 'Blue List Products' table read 2026-10-29: entry 'Doodle Labs mini-OEM entries'
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
