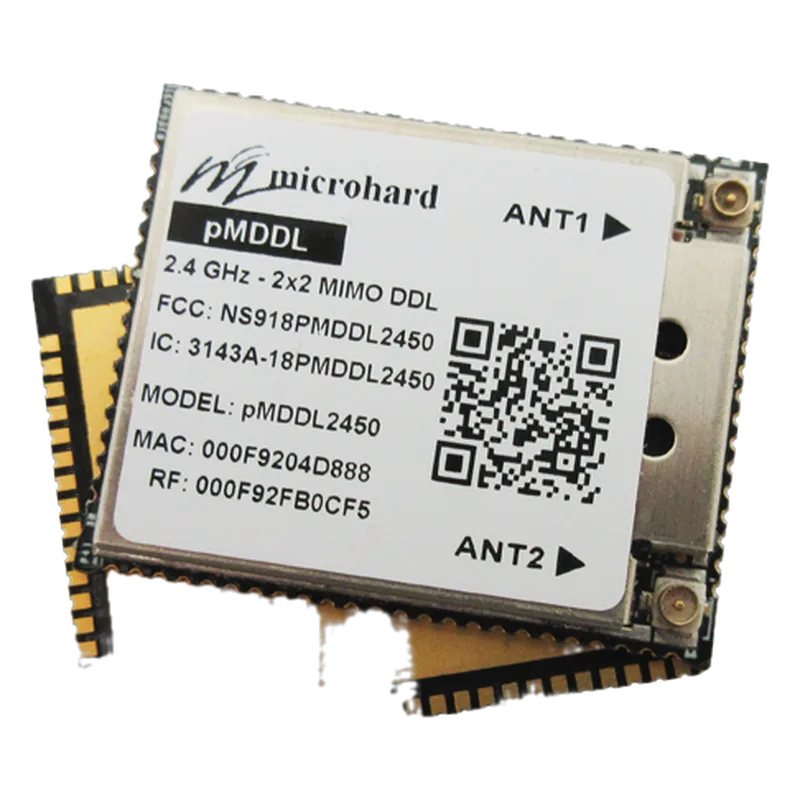

Microhard pMDDL2450 2x2 MIMO OEM Digital Data Link
Microhard · MPN MHK185500 · Maglev ID dr-microhard-pmddl2450
CA Maker in Canada, factory not confirmed Blue UAS VERIFIED
7 g 2.4 GHz MIMO IP data link module, a long-standing Blue UAS Framework radio.
Specifications
| Band | 2.402-2.478 GHz |
|---|---|
| Range | unknown |
| Throughput | 25.5 Mbps (64QAM 3/4), up to 27.8 Mbps |
| Weight | ~7 g OEM module (50 g motherboard, 165 g enclosed) |
| Tx power | up to 1 W (30 dBm) |
Who makes it
MakerMicrohard Systems
Based inCanada
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
7.5%
TW
0%
VN
0%
IN
0%
JP
0%
KR
0%
DE
0%
MX
0%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8517.62.00.90 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | listed |
| FCC | n/a |
| Notes | DCMA Blue UAS list: Microhard 'pMDDL2450' (2023-02-28); pDDL2450/pDDL1800 also listed. Microhard HQ Calgary, Canada (brochure). No explicit NDAA statement found. Price: request quote. Variants -ENC (MHK185550), -SWP (MHK185570). |
Equivalents from other makers
Sources
- https://www.microhardcorp.com/pMDDL2450.phpspecs, P/N
- https://www.microhardcorp.com/brochures/pMDDL2450.Brochure.Rev.1.3.0.pdfbrochure, HQ
- https://bluelist.dcma.mil/gsp?id=gsp_indexDCMA Blue UAS list (Cleared List + Framework, transitioned from DIU), 'Blue List Products' table read 2026-10-29: entry 'Microhard / pMDDL2450'
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
