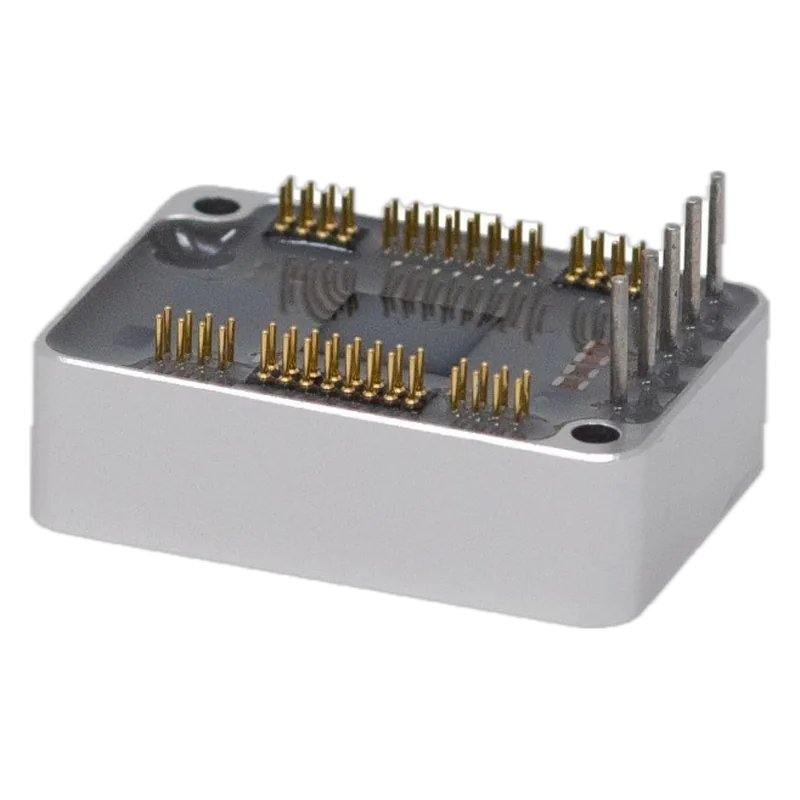

ADI Trinamic TMCM-1617 Servo Module (TMCL)
Analog Devices (Trinamic) · MPN TMCM-1617-TMCL · Maglev ID mo-adi-tmcm-1617-tmcl
US Maker in United States, factory not confirmed unknown REPORTED
Tiny 37 x 27 mm, 24 g single-axis BLDC servo module (18 A RMS, 8-28 V) with RS485/CAN; variants for CANopen and EtherCAT (CoE).
Specifications
| Bus voltage | 8-28 V (24 V nominal) |
|---|---|
| Continuous current | Up to 18 A RMS motor current |
| Peak current | unknown |
| Interface | RS485, CAN (TMCL / CANopen) or EtherCAT (COE variant) |
| Feedback | Incremental encoder, analog encoder, digital Hall |
| Mass | approx. 24 g |
| Dimensions | 36.8 x 26.8 x 11.1 mm |
Who makes it
MakerAnalog Devices (Trinamic)
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Search snippets indicate ADI lists TMCM-1617 as LAST TIME BUY; analog.com page could not be loaded to confirm. |
Sources
- https://www.digikey.com/en/product-highlight/t/trinamic/tmcm-1617specs, variants, TMCL price $716.28 (0 in stock)
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
