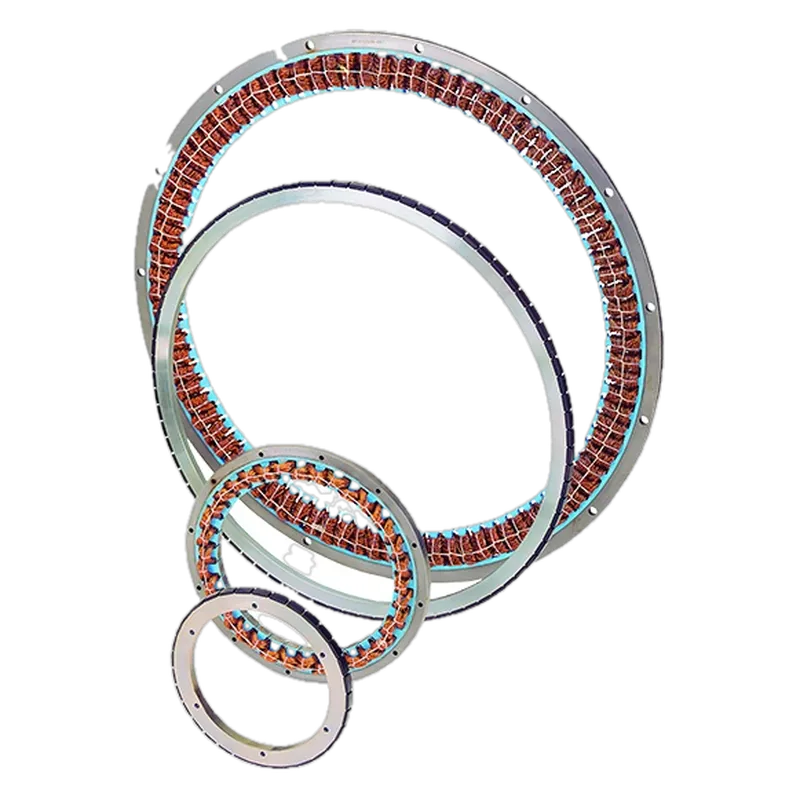

Allied Motion Megaflux MF0095020 Frameless Torque Motor (48 VDC)
Allied Motion · MPN MF0095020 (winding A, 48 VDC) · Maglev ID mo-allied-megaflux-mf0095020-a
US Maker in United States, factory not confirmed unknown VERIFIED
Thin-ring 94.7 mm frameless torque motor with 58 mm bore and standard Halls; high peak torque for direct-drive joints and gimbals.
Specifications
| Peak torque | 18 Nm (+/-25%) |
|---|---|
| Continuous torque | 1.73 Nm stall (48 V winding, plate-mounted) |
| Outer diameter | 94.7 mm stator OD |
| Axial length | 19.7 mm stator; rotor 24.6 mm |
| Voltage | 48 VDC winding (also 150/300 VDC) |
| Mass | 0.68 kg |
| Rotor ID | 58.42 mm |
| No-load speed | 3158 rpm |
| Torque constant | 0.14 Nm/A |
Who makes it
MakerAllied Motion Technologies
Based inUnited States
RoleBrand owner
Chinese alternative: Shenzhen Xiaoxiang Electric (SEMotor) makes axial-flux and torque motors for humanoid and quadruped joints; not benchmarked against this part.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Works with
Sources
- https://www.alliedmotion.com/wp-content/uploads/datasheets/Megaflux_Frameless_Torque_Motors_MF0095_R7d.pdfMF0095 datasheet R7d (2016): specs table, dimensions, model numbering
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
