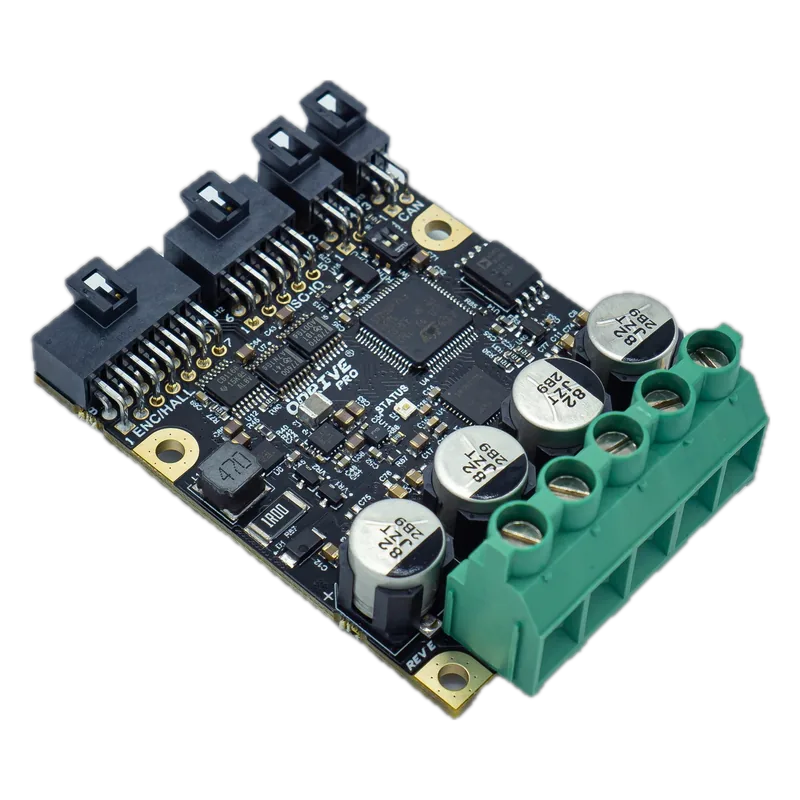

ODrive Pro High-Power BLDC Controller
Flagship single-axis ODrive (4 kW continuous, 99% modulation) with isolated CAN/GPIO and SSI/BiSS-C encoder inputs, for heavy robot joints run from a battery or regen clamp.
Specifications
| Bus voltage | 15-58 V |
|---|---|
| Continuous current | 70 A nominal with heat spreader + forced air (80 A active cooling per datasheet; 20 A free air) |
| Peak current | 120 A (comparison table); datasheet lists 100 A for 3 s |
| Interface | USB, CAN / CAN-FD (isolated), UART, analog, PWM, STEP/DIR |
| Feedback | Onboard encoder, quadrature, Hall, RS485, SPI, differential SSI, BiSS-C |
| Continuous power | 4 kW |
| Mass | 32 g bare board (34 g in comparison table) |
| Dimensions | 51 x 64 x 17.5 mm |
| Brake resistor driver | No (use battery or regen clamp) |
Who makes it
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
TQ-RoboDrive ILM70x10 Servo KitTQ-RoboDrive · DE · Quote
TQ-RoboDrive ILM85x13 Servo KitTQ-RoboDrive · DE · Quote
CubeMars RI80 V2.0 KV75 Frameless Inrunner Torque MotorCubeMars · CN · $132.90
CubeMars RO80 KV105 Frameless Outrunner Torque MotorCubeMars · CN · $104.90
Allied Motion Megaflux MF0095020 Frameless Torque Motor (48 VDC)Allied Motion · US · Quote
ODrive D5065 270KV Dual Shaft MotorODrive Robotics · US · $89
ODrive D6374 150KV Dual Shaft MotorODrive Robotics · US · $119
ODrive M8325s 100KV Pancake Motor with Encoder MagnetODrive Robotics · US · $149
TQ-RoboDrive ILM38x12 Frameless Servo KitTQ-RoboDrive · DE · Quote
TQ-RoboDrive ILM50x14 Frameless Servo KitTQ-RoboDrive · DE · Quote
TQ-RoboDrive ILM85x23 Frameless Servo KitTQ-RoboDrive · DE · $707.58
TQ-RoboDrive ILM115x25 Frameless Servo KitTQ-RoboDrive · DE · $1,300.09Allied Motion Megaflux MF0060020 Frameless Torque Motor (48 VDC)Allied Motion · US · QuoteAllied Motion Megaflux MF0127020 Frameless Torque Motor (48 VDC)Allied Motion · US · Quote
Celera Motion Omni+ OPH-070-025-B Frameless MotorCelera Motion (Novanta) · US · Quote
Celera Motion Omni+ OPH-100-025-B Frameless MotorCelera Motion (Novanta) · US · Quote
ODrive Encoder OA1 On-Axis Magnetic Encoder, RS485ODrive Robotics · US · $39Sources
- https://shop.odriverobotics.com/products/odrive-proprice tiers, SKUs, notes
- https://docs.odriverobotics.com/v/latest/hardware/pro-datasheet.htmlvoltage, current, mass, dimensions
- https://docs.odriverobotics.com/v/latest/hardware/odrive-comparison.htmlinterfaces, feedback, nominal/peak current
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
