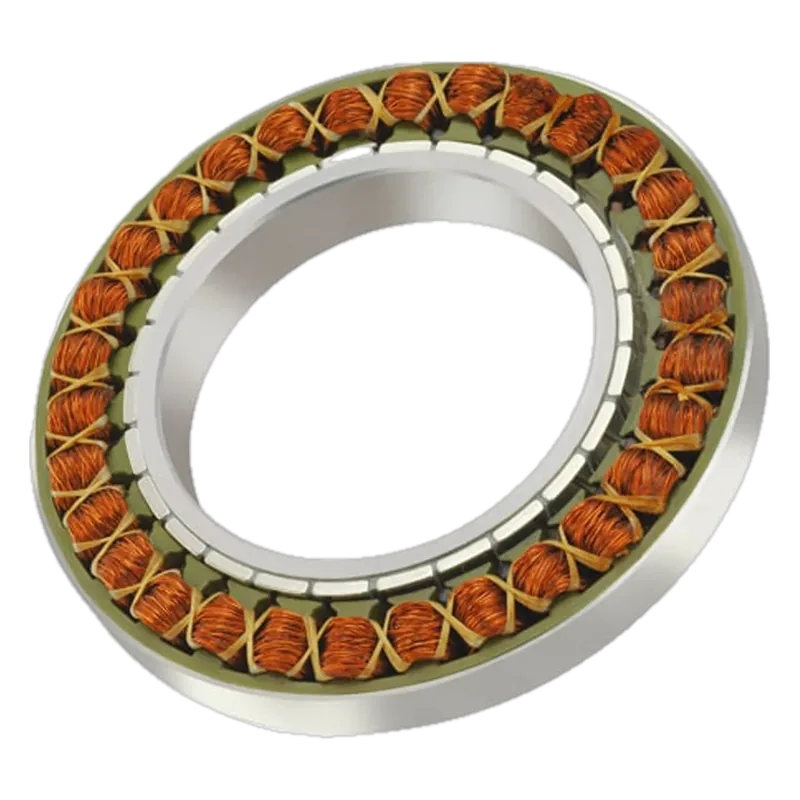

Celera Motion Omni+ OPH-100-025-B Frameless Motor
Celera Motion (Novanta) · MPN OPH-100-025-B · Maglev ID mo-celera-omni-plus-oph-100-025-b
US Maker in United States, factory not confirmed unknown VERIFIED
100 mm low-cogging Omni+ frameless kit (25 mm stack, Halls, winding B) sized to pair with strain wave gears in robot joints.
Specifications
| Peak torque | 8.83 Nm max torque |
|---|---|
| Continuous torque | 3.35 Nm |
| Outer diameter | 100 mm stator OD |
| Axial length | 40.6 mm stator length with Halls (25 mm stack); rotor 30.0 mm |
| Voltage | 48 VDC design voltage |
| Mass | 0.816 kg total (estimated, no-Hall basis; Hall option adds ~0.015 kg) |
| Rotor ID | 60.0 mm |
| Rated speed | 1500 rpm |
| Continuous current | 13.7 ADC |
| Max current | 35.9 ADC |
| Torque constant | 0.235 Nm/Apeak (KtSINE, 25 C) |
| Pole count | 22 |
Who makes it
MakerCelera Motion (Novanta)
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://novanta.com/robotics-automation/wp-content/uploads/sites/3/2026/03/Omni__Motors_Data_Sheet_English.pdfOmni+ datasheet DS-2001 REV060223: OPH-100-025-B winding B performance and physical specs
- https://novanta.com/robotics-automation/product/omni-series-frameless-motor-2/maker product page (Novanta Robotics & Automation), series photo
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
