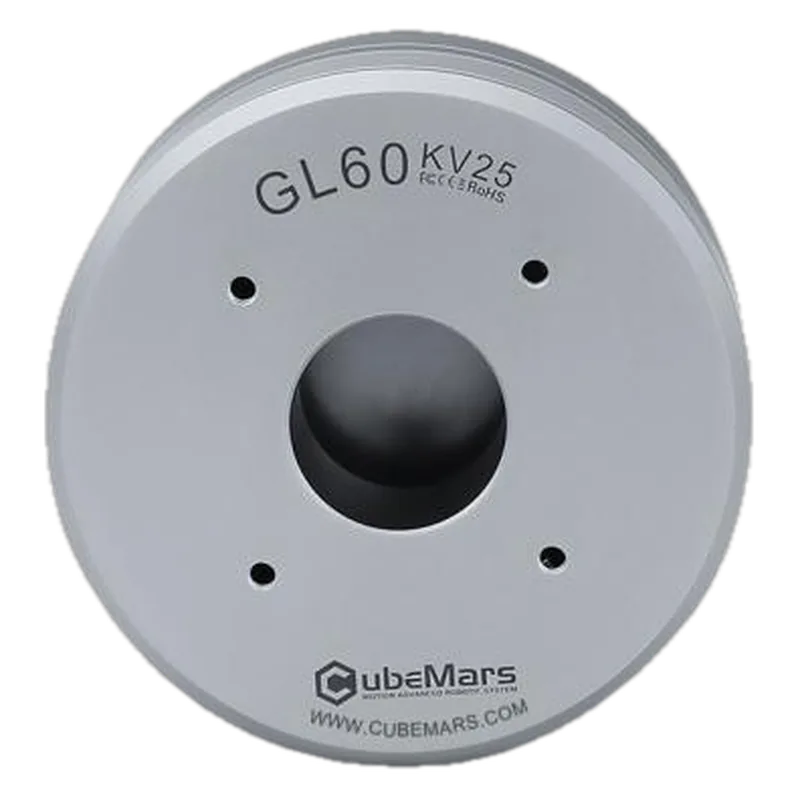

CubeMars GL60 KV25 Gimbal Motor
CubeMars · MPN GL60 KV25 · Maglev ID mo-cubemars-gl60-kv25
CN Maker in China, factory not confirmed unknown VERIFIED
69 mm gimbal outrunner with a 20 mm through bore for cable pass-through; mid-size gimbals and slow direct-drive axes.
Specifications
| KV | 21.5 rpm/V measured (model name KV25) |
|---|---|
| Rated voltage | 24 V |
| Peak torque | 1.75 Nm |
| Outer diameter | 69 mm |
| Mass | 230 g |
| Rated torque | 0.6 Nm |
| Height | 22.3 mm |
| Through bore | 20 mm |
| Pole pairs | 14 |
| Ingress protection | IP45 |
Who makes it
MakerCubeMars
Based inChina
RoleBrand owner
CubeMars and T-MOTOR are one manufacturer group (Sanrui Intelligent, Nanchang, Jiangxi), already in Maglev's actuator benchmark pool as CN002; contact on file is [email protected]. Ask about custom windings and which country each part is made in.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
Sources
- https://www.cubemars.com/product/gl60-kv25-gimbal-motor.htmlspecs table, 2D/3D (STEP zip) downloads
- https://store.cubemars.com/products/gl60-kv25price $108.99 / $133.99 with encoder, SKU AJD05010005
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
