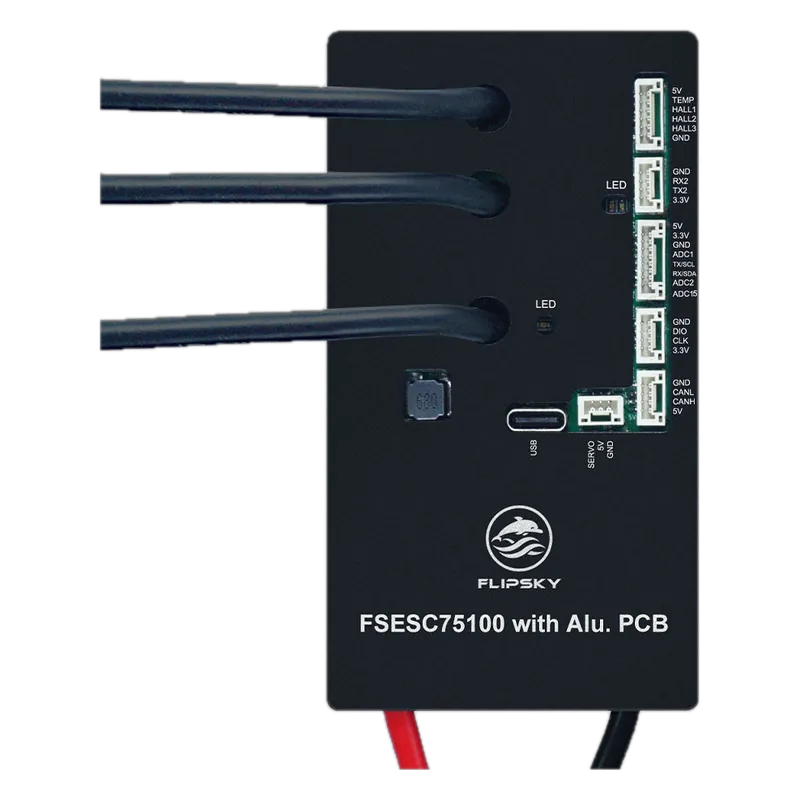

Flipsky 75100 VESC-Based ESC (Aluminum PCB)
Flipsky · MPN VAN-75S-N-100 · Maglev ID mo-flipsky-75100
CN Maker in China, factory not confirmed unknown VERIFIED
Low-cost 84 V / 100 A VESC-firmware ESC for mobile robots, AGVs and e-mobility drive wheels where cost beats precision.
Specifications
| Bus voltage | 14-84 V (4-20S) |
|---|---|
| Continuous current | 100 A |
| Peak current | 120 A burst |
| Interface | USB, CAN, UART; inputs PPM, ADC, NRF |
| Feedback | ABI encoder, Hall, AS5047, AS5048A, or sensorless |
| Dimensions | 103 x 58 x 18.5 mm |
| Firmware | VESC (BLDC + FOC); phase filter not supported |
| SKUs | VAN-75S-N-100 (no case) $73, VA-75S-N-100 (aluminum case) $77, VW-75S-N-100 (water cooling) $106 |
Who makes it
MakerFlipsky
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://flipsky.net/products/flipsky-75100-with-aluminum-pcb-based-on-vesc-for-electric-skateboard-electric-scooter-ebike-speed-controllerspecs, variant SKUs and prices (via Shopify product JSON)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
