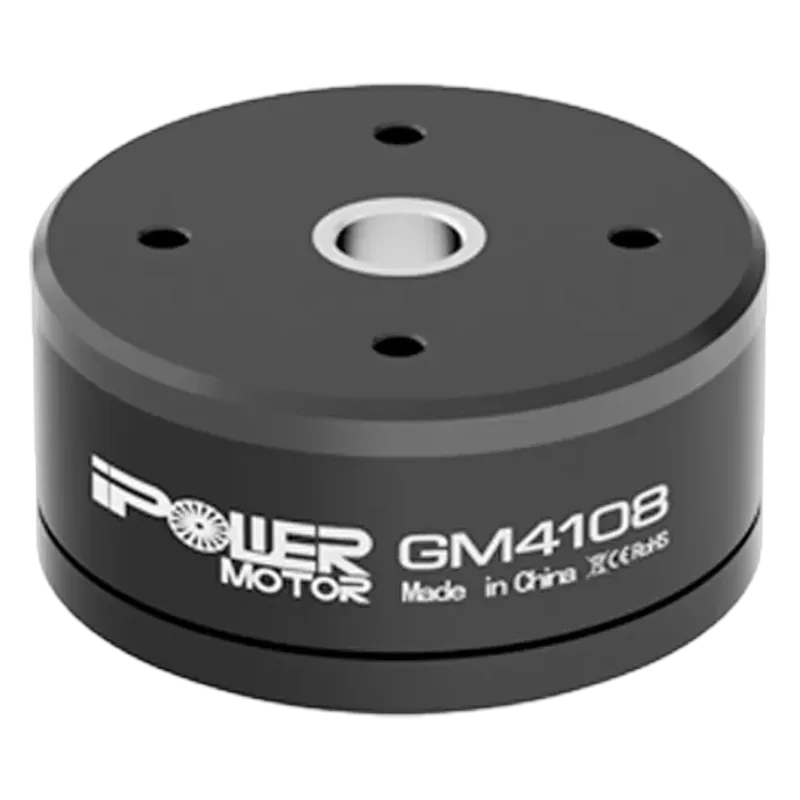

iFlight iPower GM4108H-120T Gimbal Motor
iFlight · MPN GM4108H-120T · Maglev ID mo-iflight-gm4108h-120t
CN Maker in China, factory not confirmed unknown VERIFIED
47 mm hollow-shaft gimbal outrunner, 24N22P high-turn winding, a common choice for SimpleFOC hobby robot joints and DSLR gimbals.
Specifications
| KV | not listed (no-load 513-567 rpm at 20 V) |
|---|---|
| Rated voltage | 20 V (no-load and load volts) |
| Load torque | 1200-1800 g·cm (~0.12-0.18 Nm); peak not stated |
| Outer diameter | 47 ±0.05 mm |
| Mass | 124 ±0.5 g |
| Height | 22.7 ±0.2 mm |
| Configuration | 24N/22P |
| Internal resistance | 11.1 Ω ±5% |
| Hollow shaft ID | 8 mm (shaft OD 10 mm) |
| Max power | ≤25 W |
| Load current | 1.5 A |
Who makes it
MakeriFlight
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Also sold by resellers as 'GBM4108H-120T'. |
Equivalents from other makers
Sources
- https://shop.iflight.com/ipower-motor-gm4108h-120t-brushless-gimbal-motor-pro217specs + price $35.90
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
