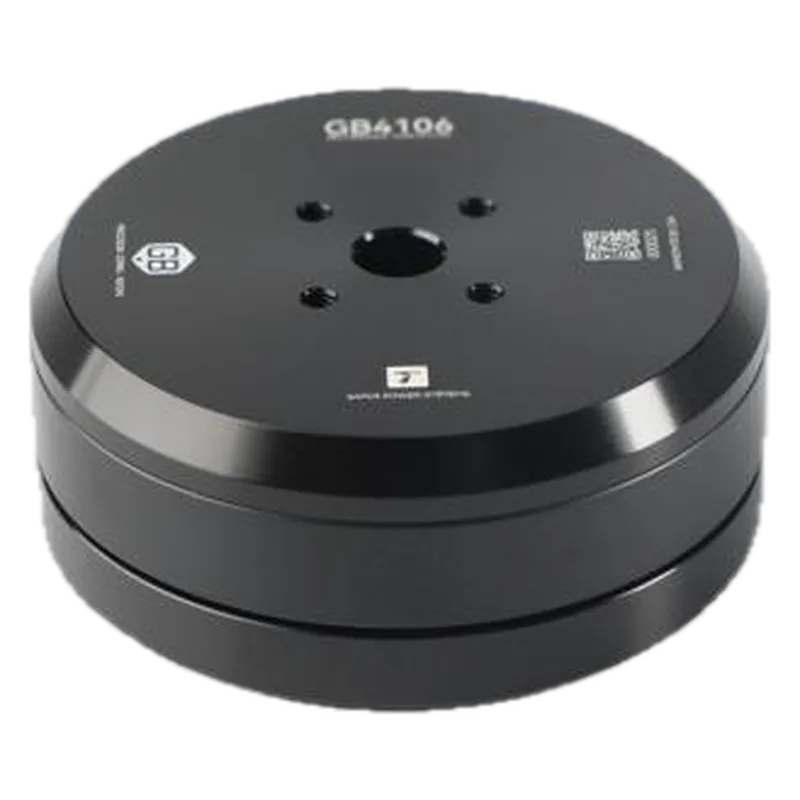

T-Motor GB4106 KV53 Gimbal Motor
T-Motor · MPN GB4106 KV53 · Maglev ID mo-tmotor-gb4106-kv53
CN Maker in China, factory not confirmed unknown VERIFIED
47.75 mm, 70 g low-cost gimbal outrunner for 3-6S camera gimbals and light hobby robot joints.
Specifications
| KV | 53 |
|---|---|
| Rated voltage | 3-6S LiPo |
| Torque | 0.2 Nm (listed as 'Motor's Torsion'; peak vs rated not stated) |
| Outer diameter | 47.75 mm (ø47.75 x 20 mm) |
| Mass | 70 g incl. cable |
| Height | 20 mm |
| Configuration | 12N14P |
| Internal resistance | 15.3 Ω |
| Hole size | 5.6 mm |
Who makes it
MakerT-Motor (Jiangxi Xintuo)
Based inChina
RoleBrand owner
CubeMars and T-MOTOR are one manufacturer group (Sanrui Intelligent, Nanchang, Jiangxi), already in Maglev's actuator benchmark pool as CN002; contact on file is [email protected]. Ask about custom windings and which country each part is made in.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | voltage_v num is 6S full charge (25.2 V); page states only 3-6S. |
Equivalents from other makers
Works with
Sources
- https://store.tmotor.com/product/gb4106-gimbal-type.htmlspecs + price $45.90
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
