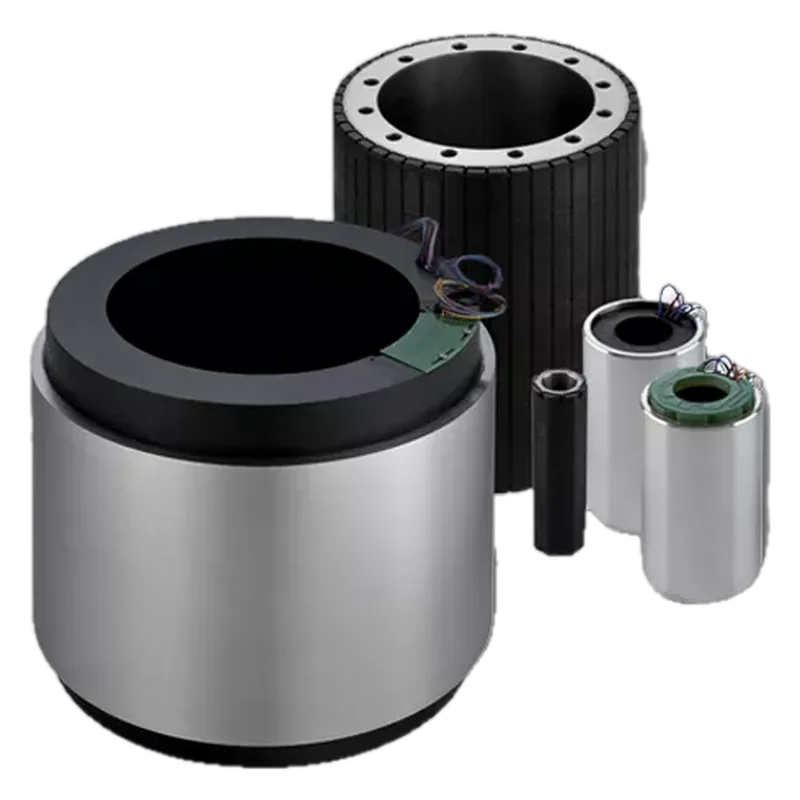

Kollmorgen KBMS-17H01-C Frameless Motor (with Halls) (winding C)
Kollmorgen · Maglev ID mo-kollmorgen-kbms-17h01-c
US Maker in United States, factory not confirmed unknown VERIFIED
Industrial frameless servo kit, 85 mm OD, 1-stack, high-voltage insulation and Hall sensors; for robot joints and rotary axes on AC-line servo drives.
Specifications
| Peak torque | 6.35 Nm (peak standstill, 25 C winding) |
|---|---|
| Continuous torque | 2.07 Nm continuous standstill (155 C winding) |
| Outer diameter | 84.93 mm stator OD (dim. C) |
| Axial length | 57.80 mm (catalog dim. A, stator); KBMS rotor 49.07 mm |
| Voltage | unknown; H = high-voltage insulation (>240 V AC), catalog pairs winding C with servo amp type 01206 |
| Mass | 1.16 kg (KBMS); 1.05 kg KBM |
| Rotor bore | 30.01 mm max (dim. D) |
| Rated speed | 9050 rpm |
| Rated power | 855 W |
| Continuous standstill current | 6.10 A |
Who makes it
MakerKollmorgen
Based inUnited States
RoleBrand owner
Kollmorgen has motor manufacturing in Radford, Virginia (per Maglev's US sourcing research); the plant this SKU is made in is not confirmed.
Landed cost in the US
CN
40.4%
TW
10%
VN
15.4%
IN
12.9%
JP
12.5%
KR
12.5%
DE
10%
MX
12.9%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.32.20.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Works with
Sources
- https://micromech.co.uk/wp-content/uploads/2023/12/kbm_catalogue.pdfKollmorgen KBM catalogue section (hosted by distributor Micromech): performance table 17X01-C, dimensions, nomenclature
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
