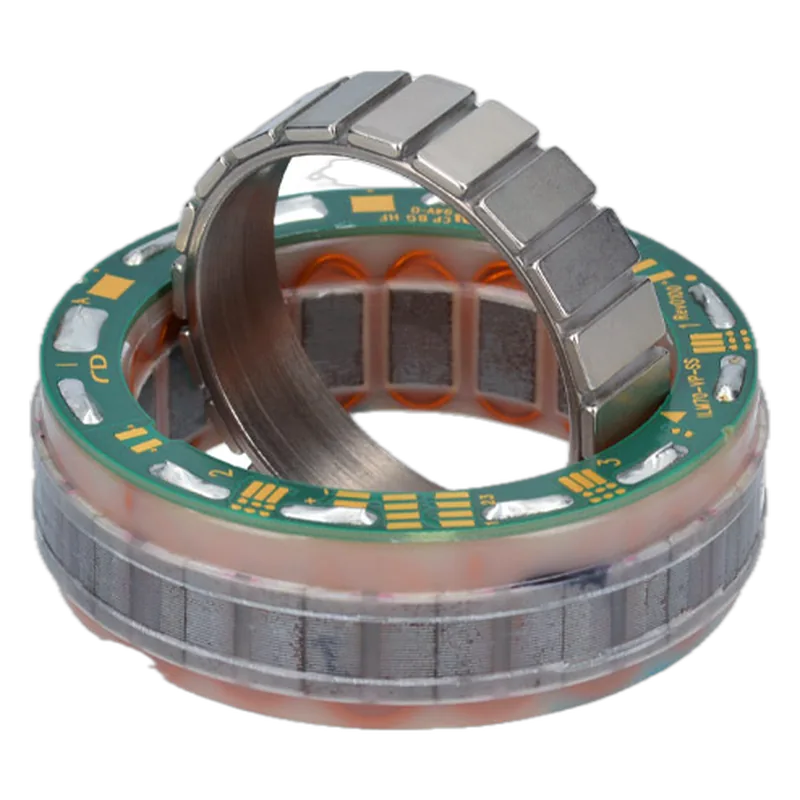

TQ-RoboDrive ILM70x10 Servo Kit
TQ-RoboDrive · MPN ILM70x10 · Maglev ID mo-tq-robodrive-ilm70x10
DE Maker in Germany, factory not confirmed unknown VERIFIED
DLR-derived frameless stator/rotor kit, 69 mm OD, for compact robot joints with strain-wave gears; Hall option available.
Specifications
| Peak torque | 2.13 Nm (star-serial) |
|---|---|
| Continuous torque | 0.66 Nm nominal (star-serial) |
| Outer diameter | 69 mm stator OD |
| Axial length | 22.7 mm stator length |
| Voltage | 48 V nominal |
| Mass | 220 g |
| Rotor inner diameter | 42 mm |
| Rated speed | 3650 rpm (star-serial) |
| Rated power | 250 W |
| Torque constant | 109 mNm/A |
Who makes it
MakerTQ-Systems GmbH
Based inGermany
RoleBrand owner
Chinese alternative: Shenzhen Xiaoxiang Electric (SEMotor) makes axial-flux and torque motors for humanoid and quadruped joints; not benchmarked against this part.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
Sources
- https://www.tq-group.com/en/products/tq-robodrive/servo-kits/ilm70x10specs, STEP download offered, delivery time; no price shown
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
