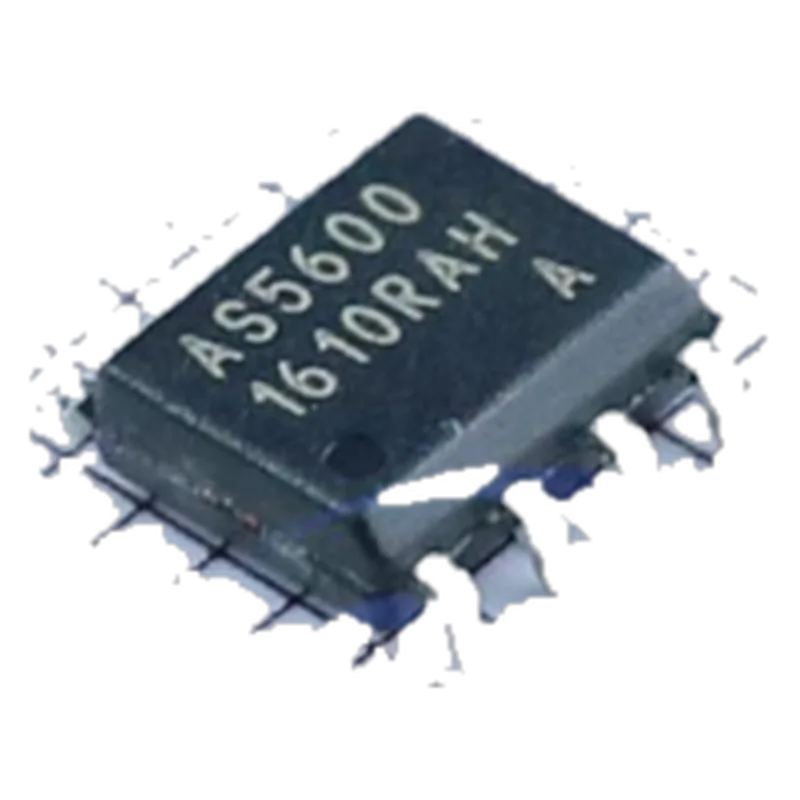

ams OSRAM AS5600 12-bit Magnetic Angle Sensor IC
ams OSRAM · MPN AS5600-ASOM · Maglev ID ac-ams-as5600-asom
AT Maker in Austria, factory not confirmed unknown VERIFIED
Low-cost 12-bit Hall angle sensor with I²C and analog/PWM output; fine for slow joints and knobs, too coarse for FOC on high-pole motors.
Specifications
| Resolution | 12-bit |
|---|---|
| Accuracy | System INL ±1° (no magnet displacement) |
| Max speed | unknown |
| Interface | I²C; analog (ratiometric) or PWM on OUT pin |
| Form | IC, SOIC-8 |
| Sensing | Hall |
| Supply | 4.5–5.5 V or 3.0–3.6 V |
| Bore | n/a |
| Operating temp | -40 to +125 °C |
Who makes it
Makerams OSRAM
Based inAustria
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.lcsc.com/product-detail/C79815.htmlprice breaks, stock, package, supply range (LCSC listing / product API)
- https://datasheet.lcsc.com/datasheet/pdf/fab02cf30a2c48b5aeeebf03db9fe675.pdf?productCode=C79815datasheet: 12-bit, I²C, analog/PWM, system INL ±1°
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
