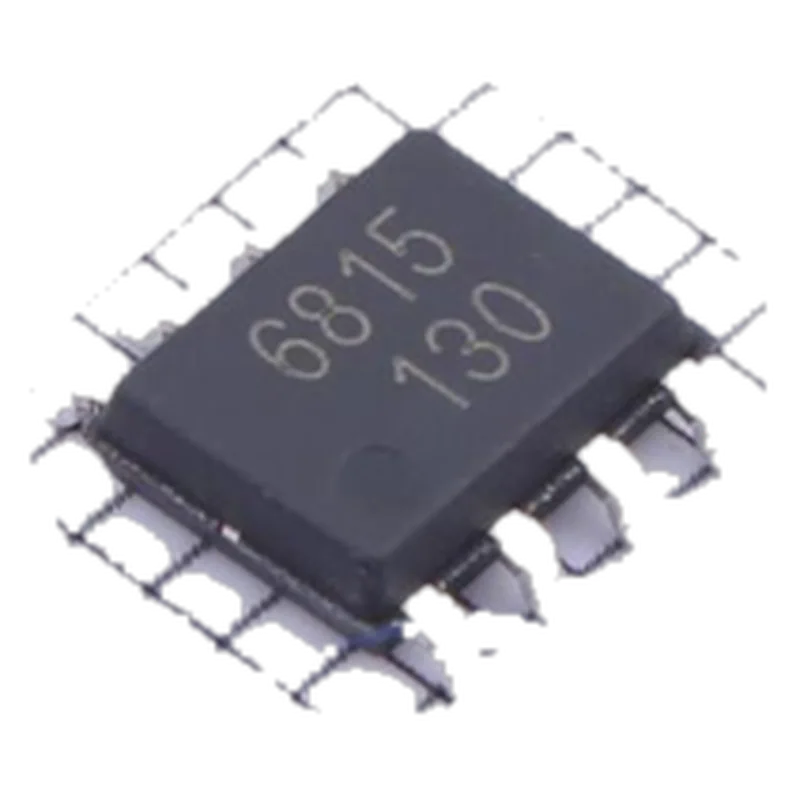

MagnTek MT6815 14-bit AMR Angle Sensor IC (I²C/SPI/analog)
General-purpose 14-bit AMR angle sensor with I²C, SPI, analog, ABZ, PWM and UVW; slower (10,000 rpm) and less accurate than MT6816, for joints and knobs rather than FOC.
Specifications
| Resolution | 14-bit core; 12-bit DAC/PWM |
|---|---|
| Accuracy | INL ±1° typ, ±1.5° max |
| Max speed | 10,000 rpm |
| Interface | I²C; SPI; analog; ABZ (32–2500 pulses, selectable); PWM; UVW |
| Form | IC, SOP-8 |
| Sensing | AMR |
| Supply | 3.3–5.0 V (3.0–5.5 V) |
| Bore | n/a |
| Operating temp | -40 to +125 °C |
