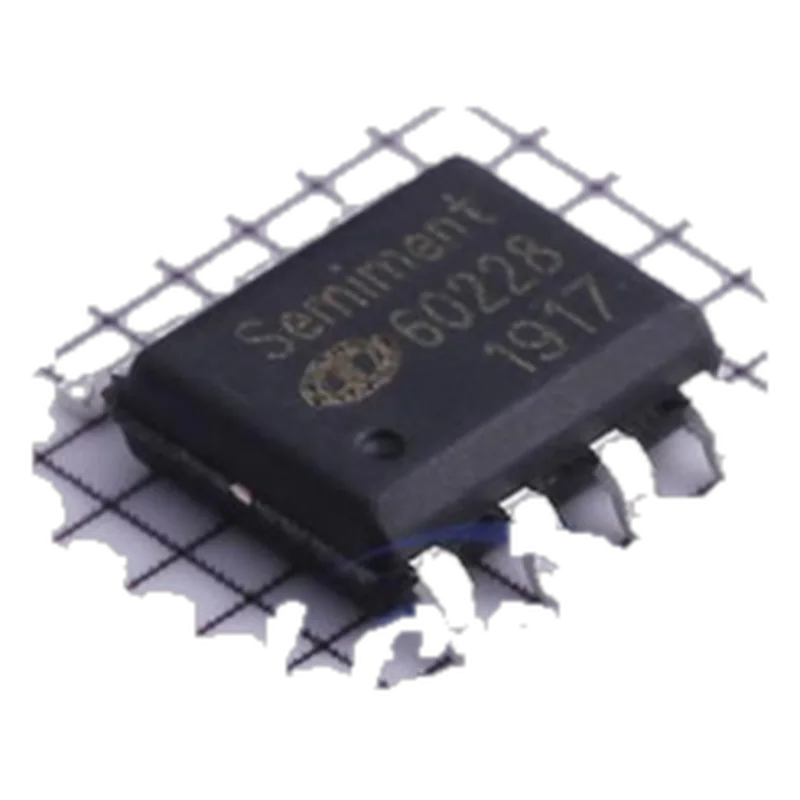

Semiment SC60228 12-bit Hall Angle Sensor IC (SPI)
Semiment · MPN SC60228DC-TR · Maglev ID ac-semiment-sc60228dc
CN Maker in China, factory not confirmed unknown REPORTED
Low-cost Chinese 12-bit Hall-array angle sensor in SOIC-8 with SPI, 20,000 rpm; the SOP-8 member of the SC6022x family (SSOP-16 members add ABZ/UVW/PWM).
Specifications
| Resolution | 12-bit |
|---|---|
| Accuracy | < ±0.35° (front-page claim); electrical-table INL rows partly unreadable in the PDF text |
| Max speed | 20,000 rpm |
| Interface | SPI |
| Form | IC, SOIC-8 |
| Sensing | Hall (array) |
| Supply | 3.0–5.5 V |
| Bore | n/a |
| Operating temp | -40 to +125 °C |
Who makes it
MakerSemiment
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.lcsc.com/product-detail/C496752.htmlprice breaks, stock, package, supply range (LCSC listing / product API)
- https://datasheet.lcsc.com/datasheet/pdf/09a1ff6f54f7bcc56ae84ae3d75cc366.pdf?productCode=C496752datasheet: Chinese datasheet: 12-bit, SPI, 20 krpm, <±0.35° claim
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
