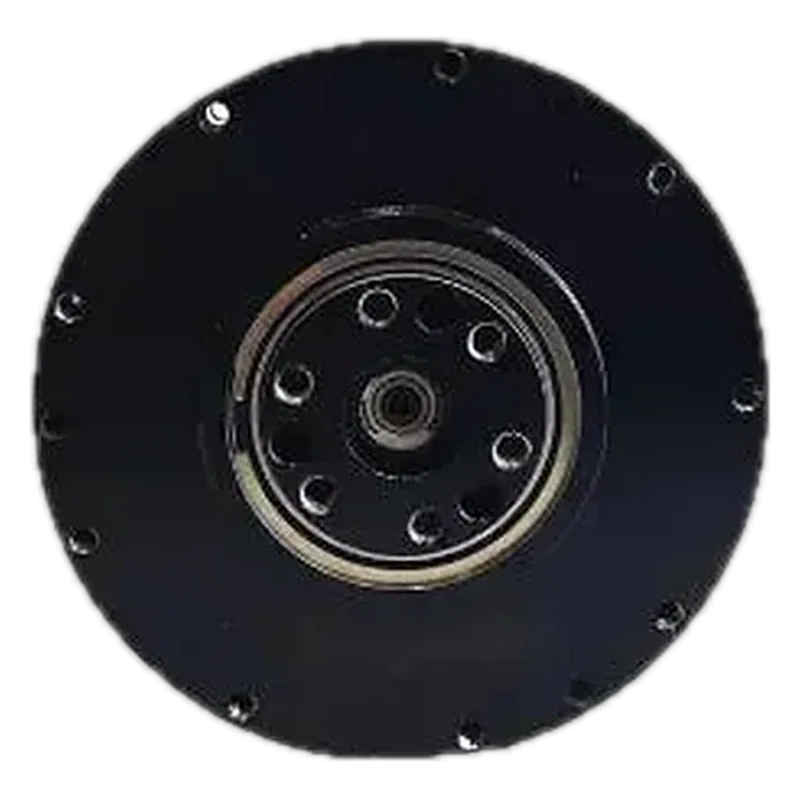

RobStride RS02 QDD Joint Actuator
RobStride · MPN RS02 · Maglev ID ac-robstride-rs02
CN Maker in China, factory not confirmed unknown VERIFIED
Integrated planetary quasi-direct-drive joint (motor, 7.75:1 planetary, driver, dual encoders) for legged and humanoid builders who want the low-cost Chinese QDD class.
Specifications
| Peak torque | 17 N·m |
|---|---|
| Rated torque | 7 N·m (with specified heat-sink plate) |
| Gear ratio | 7.75:1 planetary |
| Voltage | 48 V rated (24-60 V) |
| Mass | 380 g |
| Interface | CAN (RobStride CAN/CANopen protocol docs) |
Who makes it
MakerBeijing Lingzu Shidai Technology (RobStride, 北京灵足时代科技)
Based inChina
RoleBrand owner
RobStride publishes customization scope on its About page (per Maglev research CN001); no Maglev contact or quote yet.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Rated torque per RobStride spec dated 2026-07-13 assumes a specified aluminium heat-sink plate; free-standing continuous torque unknown. Interface: CAN per RobStride repo docs (CANopen doc linked); per-model interface not stated in the README. |
Equivalents from other makers
CubeMars AK80-9 V3.0 KV100 Robotic ActuatorCubeMars · CN · $479.90
Unitree GO-M8010-6 Joint MotorUnitree · CN · $369
CubeMars AK70-10 KV100 Robotic ActuatorCubeMars · CN · $398.90
Synapticon ACTILINK-JD Circulo 8 Dynamic ActuatorSynapticon · DE · Quote
RobStride RS01 QDD Joint ActuatorRobStride · CN · $130
RobStride RS02-IP67 QDD Joint ActuatorRobStride · CN · $240Sources
- https://github.com/RobStride/Product_Information/blob/main/README.mdspecs + CNY catalog price (spec dated 2026-07-13)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
