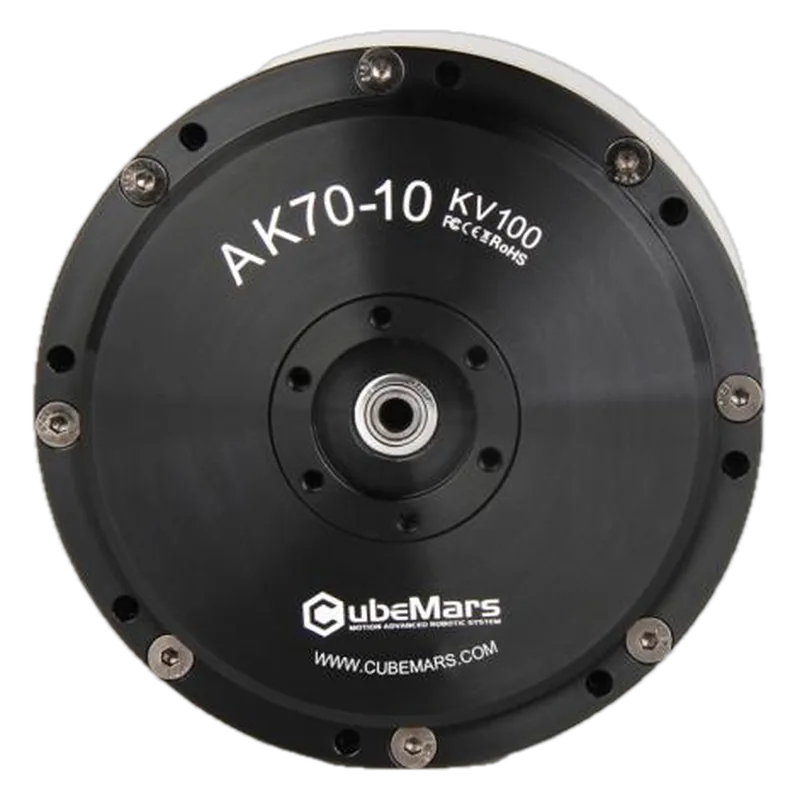

CubeMars AK70-10 KV100 Robotic Actuator
CubeMars · MPN AK70-10 KV100 · Maglev ID ac-cubemars-ak70-10
CN Maker in China, factory not confirmed unknown VERIFIED
10:1 QDD joint for legged robots and exoskeletons; mid-size step between AK60 and AK80.
Specifications
| Peak torque | 24.8 N·m |
|---|---|
| Rated torque | 8.3 N·m |
| Gear ratio | 10:1 planetary |
| Voltage | 24/48 V |
| Mass | 621 g |
| Interface | CAN (A1257WR-S-4P connector) |
| Encoder | magnetic encoder (resolution not captured) |
| Backlash | 0.2° |
Who makes it
MakerNanchang Kude Intelligent Technology (CubeMars; Sanrui group, same group as T-MOTOR)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Mass conflicts between CubeMars pages (621 g product page vs 521 g solutions page). |
Equivalents from other makers
Sources
- https://www.cubemars.com/product/ak70-10-kv100-robotic-actuator.htmlspecs + USD price + CAD/2D drawing paths
- https://www.cubemars.com/robotic-power-solution.htmllists AK70-10 at 521 g, conflicting with 621 g on product page
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
