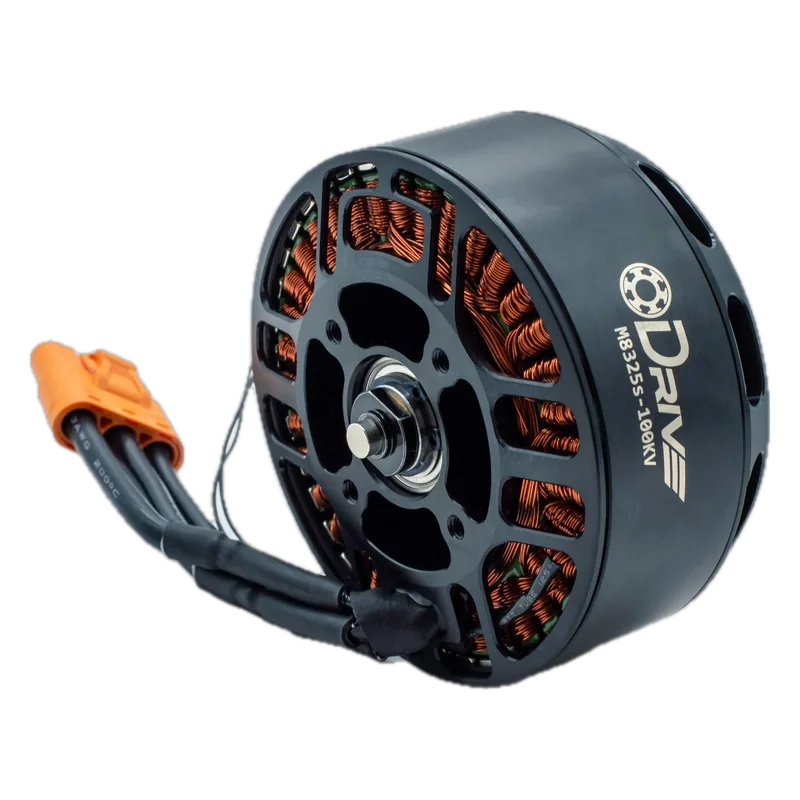

ODrive M8325s 100KV Pancake Motor with Encoder Magnet
ODrive Robotics · MPN M8325s · Maglev ID mo-odrive-m8325s-100kv
US Maker in United States, factory not confirmed unknown VERIFIED
92 mm pancake outrunner with shaft encoder magnet; ODrive's highest-torque motor for wheels, arms and QDD joints with a back-mounted ODrive.
Specifications
| KV | 100 rpm/V |
|---|---|
| Max voltage | unknown |
| Peak torque | not stated; Kt 0.083 Nm/A x 80 A 3-s peak current (derived, not a maker rating) |
| Outer diameter | 92 mm |
| Mass | 840 g |
| Torque constant | 0.083 Nm/A |
| Pole pairs | 20 |
| Phase resistance (phase-neutral) | 24 mΩ |
| Phase inductance (phase-neutral) | 9.9 µH |
| Continuous current, free air | 40 A |
| Peak current (3 s) | 80 A |
| Thermistor | NTC 10k B3435 |
| Mounting plane to top plane | 46.5 mm |
Who makes it
MakerODrive Robotics
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | SKUs: M8325s (bare wire), M8325s_2 (LCC40 connector), both $149. |
Works with
Sources
- https://shop.odriverobotics.com/products/m8325sprice + SKU (Shopify product feed, collections/motors/products.json)
- https://docs.odriverobotics.com/v/latest/hardware/odrive-motors.html#m8325s-100kvmotor characteristics table (KV, Kt, R, L, currents)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
