PANdrive NEMA 17 Smart Stepper 0.36 N·m with TMCM-1240 Controller (PD42-2-1240-TMCL)
Analog Devices (Trinamic) · MPN PD42-2-1240-TMCL · Maglev ID mo-trinamic-pd42-2-1240-tmcl
DE Maker in Germany, factory not confirmed unknown VERIFIED

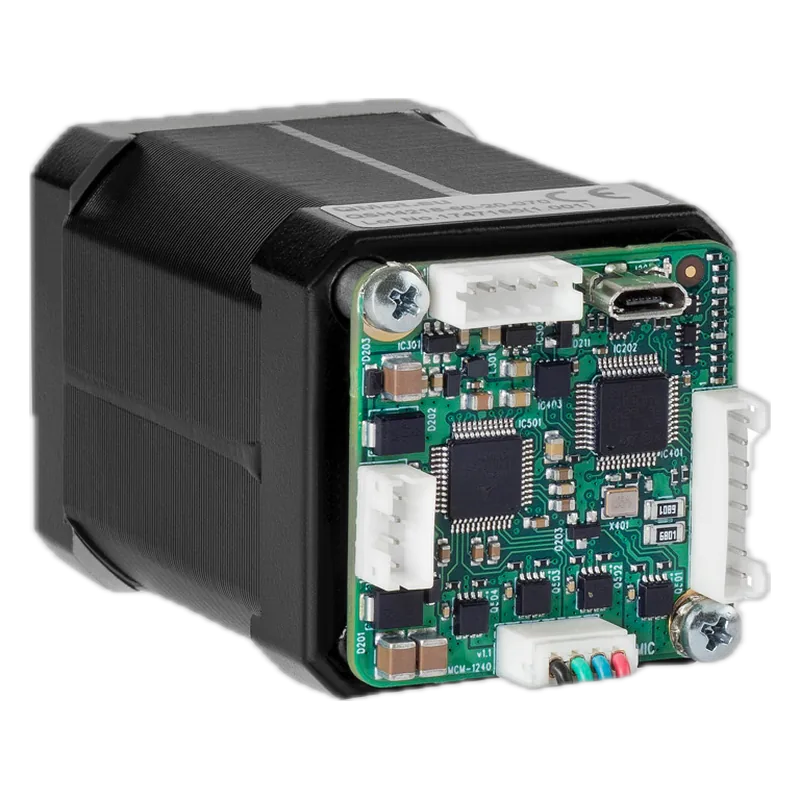

NEMA 17 stepper with on-board motion controller/driver, SensOstep magnetic encoder and RS485/CAN/USB; drop-in smart axis for lab automation.
Specifications
| Frame size | NEMA 17 (42 mm) |
|---|---|
| Holding torque | 0.36 N·m |
| Rated current | 2.0 A RMS (2.2 A RMS max / 3.1 A peak programmable) |
| Step angle | 1.8°, up to 256 microsteps |
| Length | 51 mm (excl. shaft; add 26 mm for overall) |
| Integrated driver | Yes, TMCM-1240 controller/driver, TMCL firmware |
| Supply voltage | +24 V nom. (+10 to +30 VDC) |
| Interface | RS485, CAN, USB, step/dir |
| Encoder | SensOstep magnetic absolute, 1024 increments/rev |
| Phase resistance | 1.2 Ω |
| Phase inductance | 2.2 mH |
| Motor mass | 0.24 kg |
| Motor | QSH4218-38-20-036 |
