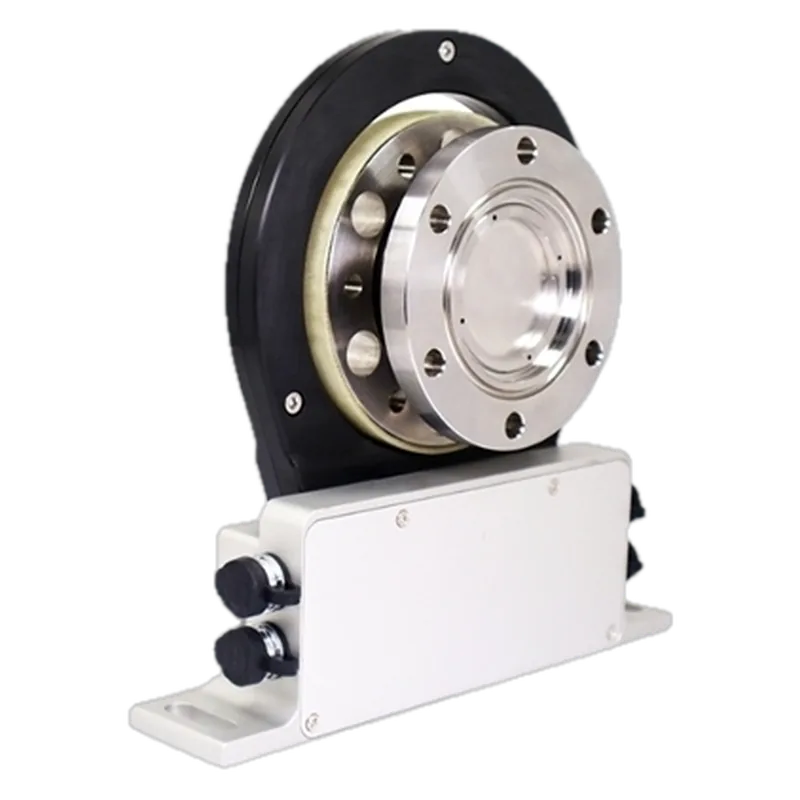

ATO-DYN-T40 Dynamic Torque Sensor for Motor Torque/RPM, 50 N·m (ATO-TQS-NT40)
ATO · MPN ATO-TQS-NT40 (ATO-DYN-T40) 50 N·m · Maglev ID te-ato-dyn-t40-50nm
CN Maker in China, factory not confirmed unknown REPORTED
High-speed rotary torque/speed sensor sold online with a list price; 12,000 rpm, analog or RS485.
Specifications
| Rated torque | 50 N·m (base option) |
|---|---|
| Sensor type | Rotary inline |
| Max speed | 12,000 rpm |
| Accuracy | 0.1–0.05% (as written on page) |
| Output | ±10 V, 4–12 mA, 4–20 mA or RS485 torque; 0–10 V/4–20 mA/RS485 speed |
| Encoder / speed | Speed pulses; page lists 30 Hz rotation pulse vs 120/240 Hz options (inconsistent), ABZ output mentioned |
Who makes it
MakerATO (ato.com)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | ATO is an online seller; underlying factory not stated. Accuracy notation on page unclear. |
Sources
- https://www.ato.com/dynamic-torque-sensorprice $4,852.67 base (50 N·m, no add-on), 12,000 rpm, outputs, image
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
