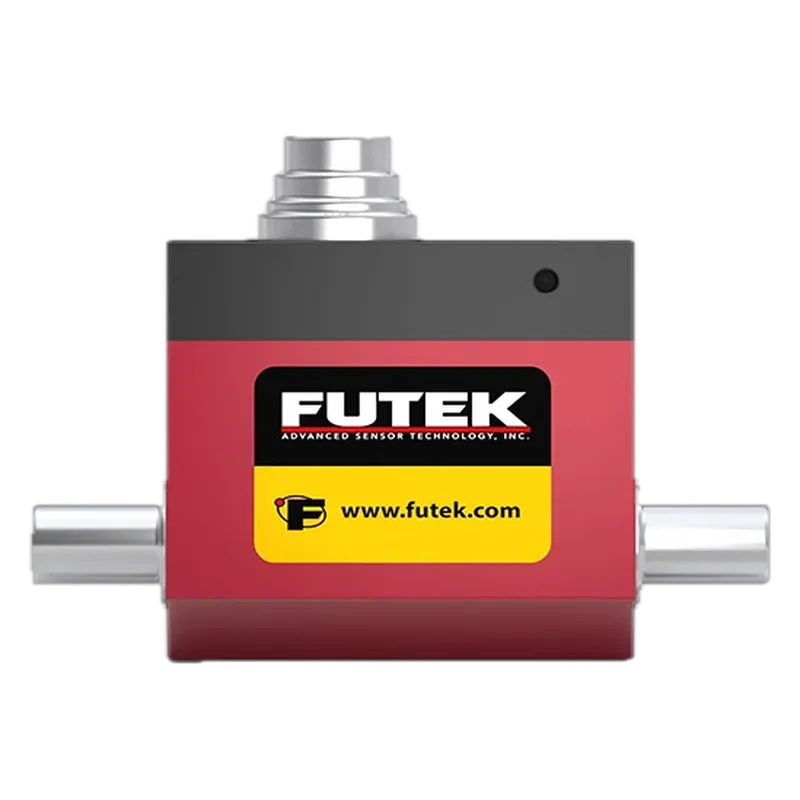

FUTEK TRS605 Non-Contact Rotary Torque Sensor with Encoder, 20 N·m (FSH02056)
FUTEK · MPN FSH02056 · Maglev ID te-futek-trs605-fsh02056
US Maker in United States, factory not confirmed unknown VERIFIED
Compact non-contact shaft-to-shaft rotary torque sensor with built-in 2x360 ppr angle encoder; a US benchmark for small-joint dynos.
Specifications
| Rated torque | 20 N·m (FSH02056; series 1–1000 N·m) |
|---|---|
| Sensor type | Rotary inline |
| Max speed | 7,000 rpm max |
| Accuracy | ±0.2% RO nonlinearity |
| Output | ±5 VDC analog (embedded conditioner) |
| Encoder / speed | 2 x 360 ppr TTL quadrature |
Who makes it
MakerFUTEK Advanced Sensor Technology
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Price quote-only (store shows $0.00 placeholder). |
Sources
- https://www.futek.com/store/torque-sensors/reaction-torque-sensor/non-contact-shaft-to-shaft-rotary-encoder-TRS605/FSH02056item FSH02056, 20 N·m, 16 mm shaft, 7000 rpm, image
- https://www.futek.com/store/torque-sensors/shaft-to-shaft-rotary-torque-sensors/non-contact-shaft-to-shaft-rotary-encoder-TRS605series specs: ±0.2% nonlinearity, ±5 VDC, 2x360 ppr encoder, 1–1000 N·m
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
