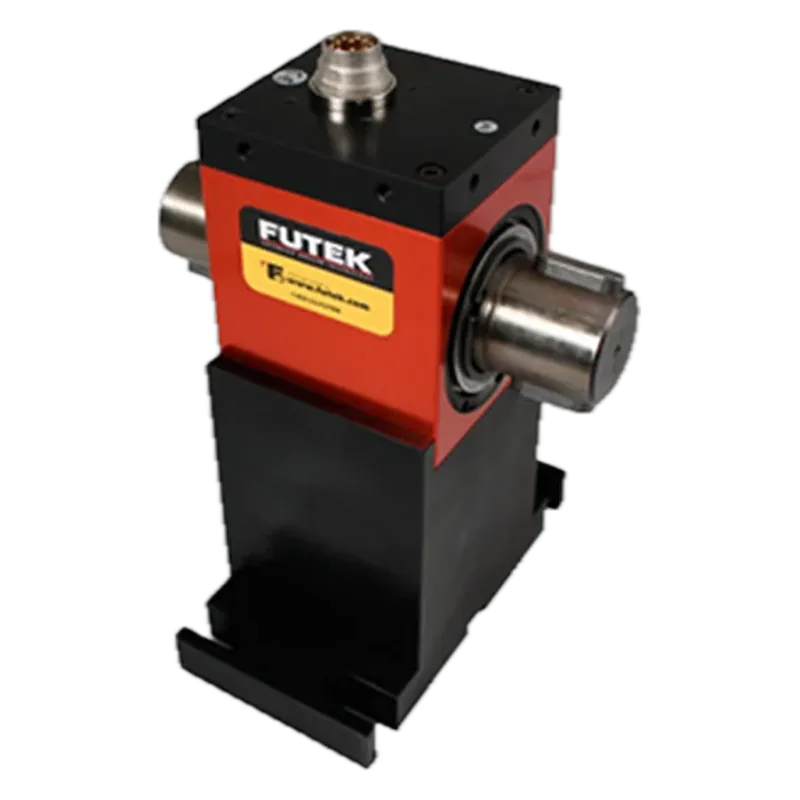

FUTEK TRS705 Non-Contact Rotary Torque Sensor with Encoder, 100 N·m (FSH02568)
FUTEK · MPN FSH02568 · Maglev ID te-futek-trs705-fsh02568
US Maker in United States, factory not confirmed unknown VERIFIED
Larger-frame FUTEK shaft-to-shaft rotary torque sensor with angle encoder, sized for 50–100 N·m joint output testing.
Specifications
| Rated torque | 100 N·m (FSH02568) |
|---|---|
| Sensor type | Rotary inline |
| Max speed | 7,000 rpm max |
| Accuracy | ±0.2% RO nonlinearity, ±0.1% RO hysteresis |
| Output | ±5 VDC analog, 3 kHz bandwidth |
| Encoder / speed | 2 x 360 ppr TTL |
Who makes it
MakerFUTEK Advanced Sensor Technology
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Price quote-only on futek.com. A 'from USD 3,175' reseller price was seen only in a search snippet (industrysearch.com.au blocked fetch) so it is not listed. |
Sources
- https://www.futek.com/store/torque-sensors/reaction-torque-sensor/non-contact-shaft-to-shaft-rotary-encoder-TRS705/FSH02568item FSH02568 100 N·m, 28 mm keyed shaft, 7000 rpm, image
- https://metromatics.com.au/wp-content/uploads/2021/11/trs705.pdfTRS705 datasheet: nonlinearity, bandwidth, output, encoder, IP40
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
