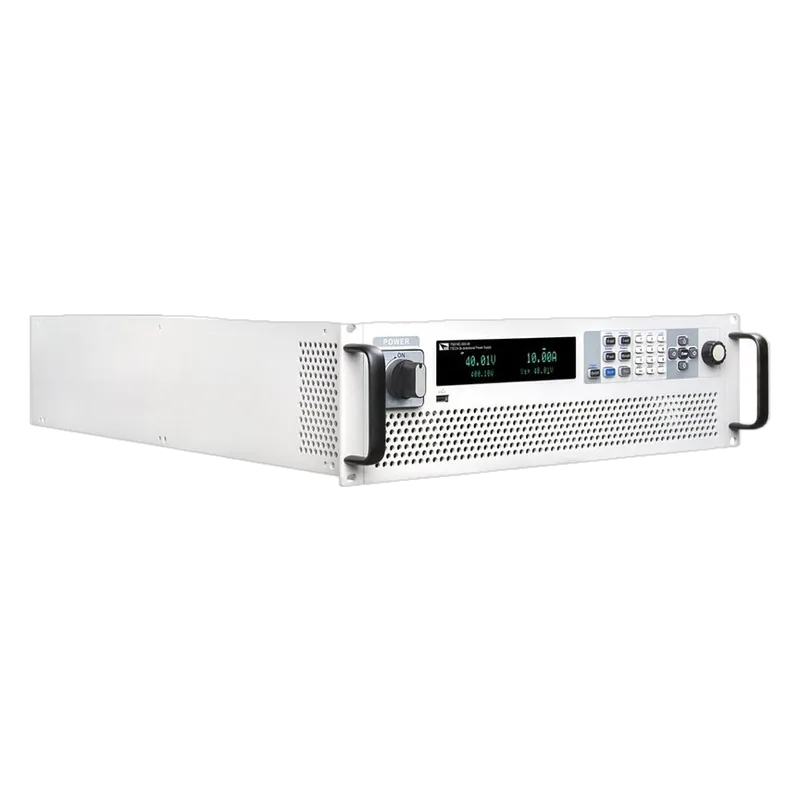

ITECH IT6005C-80-150 Regenerative Bidirectional DC Supply, 80 V / 150 A, 5 kW
ITECH · MPN IT6005C-80-150 · Maglev ID te-itech-it6005c-80-150
CN Maker in China, factory not confirmed unknown REPORTED
Two-quadrant source/sink that returns braking energy to the grid, so one box can both power the actuator and absorb its regen.
Specifications
| Instrument | Regenerative bidirectional DC power supply |
|---|---|
| Range | 0–80 V, ±150 A, 5 kW (3U) |
| Resolution | 0.001 V / 0.01 A |
| Interface | USB, CAN, LAN, digital I/O; GPIB, analog, RS-232 optional |
Who makes it
MakerITECH Electronic
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | unknown |
| Notes | Quote only. Meilhaus series page shows 'Article is currently not on stock' (series-level, not SKU-specific). Datasheet link from search, not opened. |
Equivalents from other makers
Sources
- https://meilhaus.de/en/it6000c.htmmodel table: 80 V 150 A 5 kW 0.001 V/0.01 A 3U; interfaces; regeneration up to 95% efficiency
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
