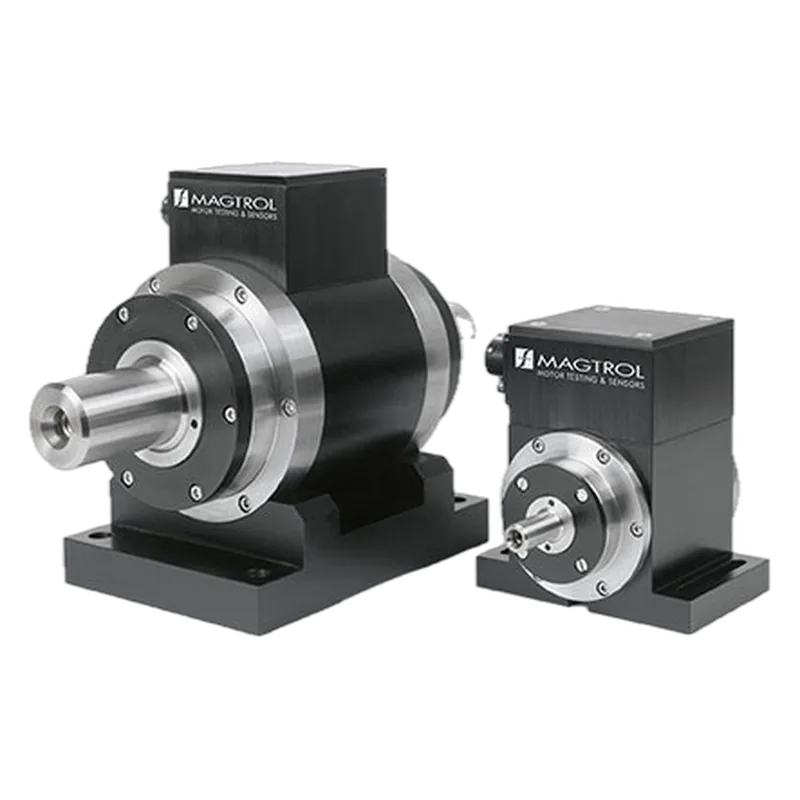

Magtrol TM 311 In-Line Torque Transducer, 100 N·m
Magtrol · MPN TM 311 · Maglev ID te-magtrol-tm-311
CH Maker in Switzerland, factory not confirmed unknown VERIFIED
Swiss-brand non-contact in-line torque transducer with optical speed pickup, 100 N·m; a classic motor-test benchmark.
Specifications
| Rated torque | 100 N·m |
|---|---|
| Sensor type | Rotary inline |
| Max speed | 10,000 rpm max |
| Accuracy | <0.1% (TM accuracy class) |
| Output | ±5 VDC (±10 VDC); pass band up to 5 kHz |
| Encoder / speed | Open-collector speed frequency (toothed optical pickup; ppr not stated) |
Who makes it
MakerMagtrol
Based inSwitzerland
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Quote only; Magtrol HQ is Switzerland (also US operations). |
Sources
- https://www.magtrol.com/product/torque-transducers/TM 300 series table: rated torque, 10,000 rpm, <0.1%, outputs
- https://www.magtrol.com/wp-content/uploads/415-309-000V011.pdfTM 309–311 dimension drawing
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
