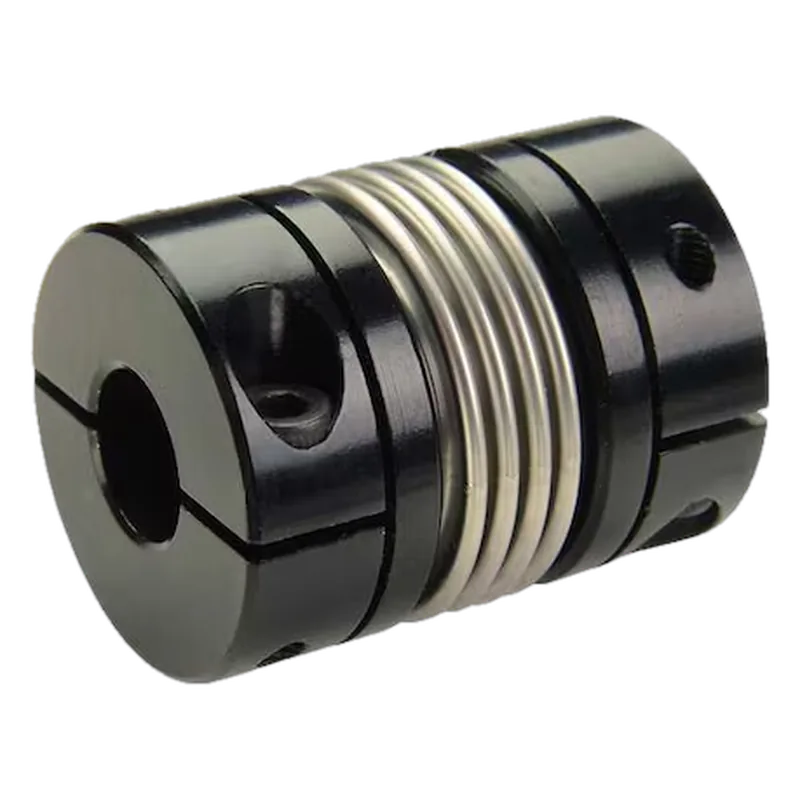

Ruland MBC41-12-10-A Bellows Coupling, 12 mm × 10 mm
Ruland · MPN MBC41-12-10-A · Maglev ID te-ruland-mbc41-12-10-a
US Made in United States unknown REPORTED
Zero-backlash aluminium bellows coupling to join a small torque sensor between motor and load.
Specifications
| Instrument | Bellows coupling |
|---|---|
| Range | Bores 12 mm × 10 mm; OD 41.3 mm; length 50.8 mm; rated torque 250 in-lb (28 N·m); 10,000 rpm |
| Resolution | Zero backlash; max misalignment 2° angular, 0.01 in parallel |
| Interface | Clamp (M4 cap screws) |
Who makes it
MakerRuland Manufacturing
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | unknown |
| Notes | Price seen USD 138.99 (lead said 132.99). Zoro lists torsional stiffness '550' (deg/in-lb units as printed, likely a unit mislabel). Opened in browser (Zoro blocks scripted fetch). |
Equivalents from other makers
Works with
Sources
- https://www.zoro.com/ruland-motioncontrol-coupling-clamp-12mmx10mm-mbc41-12-10-a/i/G8118957/specs, price, In Stock, country of origin US
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
