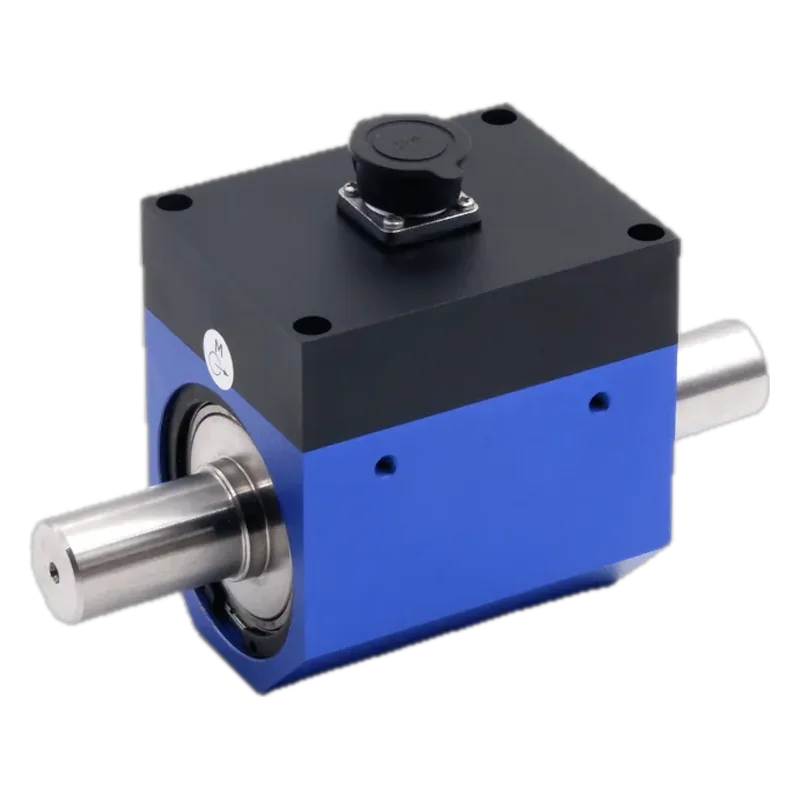

Sensorcon ZHKY2050B Slip-Ring Rotary Torque Sensor, 200 N·m
Sensorcon · MPN ZHKY2050B 200 N·m · Maglev ID te-sensorcon-zhky2050b-200nm
?? Origin not confirmed unknown REPORTED
Compact slip-ring rotary torque sensor for high-torque joint outputs (200–500 N·m) at up to 8000 rpm, frequency or analog output.
Specifications
| Rated torque | 200 N·m (series 200/300/500 N·m) |
|---|---|
| Sensor type | Rotary inline |
| Max speed | 0–8,000 rpm |
| Accuracy | ±0.5% FS default (±0.3%/±0.1% optional) |
| Output | 5–15 kHz frequency default; 4–20 mA, 1–5 V or 0–10 V optional |
| Encoder / speed | TTL speed pulse (ppr not stated) |
Who makes it
MakerSensorcon
Based inunknown
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Slip-ring type (brushes wear), unlike the non-contact ZHKY2050/2050A. Alibaba listing (USD 435 in a snippet) was behind a CAPTCHA and not verified, so no price. Maker HQ country not confirmed. |
Sources
- https://ksensors.co.kr/en/?p=30622Ksensors distributor page: capacities, speed, accuracy, outputs, image
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
