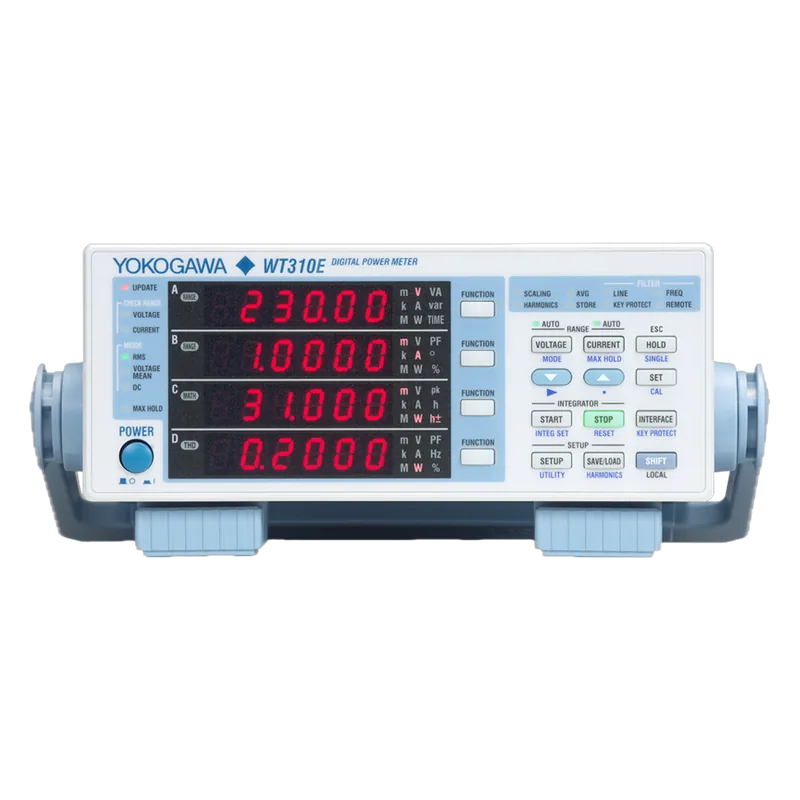

Yokogawa WT310E Digital Power Meter (single phase, 20 A)
Yokogawa · MPN WT310E · Maglev ID te-yokogawa-wt310e
JP Maker in Japan, factory not confirmed unknown VERIFIED
Benchmark single-channel power meter for DC input power, the electrical side of an efficiency map.
Specifications
| Instrument | Power analyzer |
|---|---|
| Range | Up to 600 V and 20 A direct input; DC and 0.1 Hz–100 kHz |
| Resolution | Basic accuracy 0.1% rdg + 0.05% rng (50/60 Hz); DC 0.1% rdg + 0.2% rng |
| Interface | USB, GP-IB or RS-232 (selectable); Ethernet Modbus/TCP optional |
Who makes it
MakerYokogawa Test & Measurement
Based inJapan
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | unknown |
| Notes | Lead price GBP 2,600 ex VAT at RS UK (WT310E-Q-C2/C7) could not be opened (403); left unpriced. WT310EH variant goes to 40 A. |
Works with
Sources
- https://tmi.yokogawa.com/solutions/products/power-analyzers/digital-power-meter-wt300e/WT300E series specs incl. WT310E 600 V / 20 A
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
