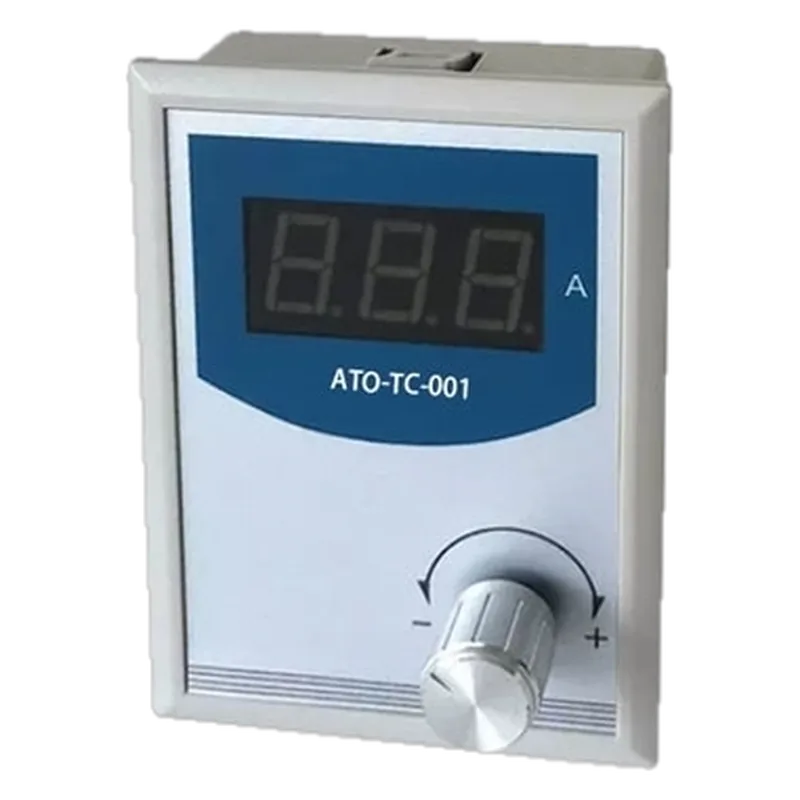

ATO-TC-001 Manual Current Controller for Powder/Hysteresis Brakes (0-4 A)
Photo: ato.com
Datasheet CAD ask with your quote Maker's page This part as JSONThis part as Markdown

ATO-TC-001 Manual Current Controller for Powder/Hysteresis Brakes (0-4 A)

ATO · MPN ATO-TC-001 · Maglev ID te-ato-tc-001
CN Maker in China, factory not confirmed unknown REPORTED

Compact manual constant-current controller (24 VDC, 0-4.0 A in 0.01 A steps) that sets the coil current, and so the torque, of a powder or hysteresis brake load.

Specifications

Rated torquen/a (brake controller)
Load typeBrake controller (manual current)
Max speedn/a
Heat dissipationunknown
ControlOutput 24 VDC / 0-4.0 A, 0.01 A steps; supply DC 26-28 V / 5 A; external potentiometer mode

Who makes it

MakerATO (ATO.com)
Based inChina
RoleBrand owner

Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.

Landed cost in the US

CN 40.6%
TW 10%
VN 15.6%
IN 13.1%
JP 12.5%
KR 12.5%
DE 10%
MX 13.1%
US 0%

Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.

Loading duty data…

Compliance

HTS classification8505.20.00.00 typical, not a ruling
NDAAunknown
Blue UASunknown
FCCn/a
NotesFanless, short-circuit protection, output enable/disable. Needs a separate 26-28 V supply. ATO also sells a digital version ATO-TC-002 (US$234.98, 0-10 V external control). Covers all brakes in this list whose rated current is ≤4 A.

How we source tariff and compliance data

Works with

ATO ATO-PB-015 Single-Shaft Magnetic Particle Brake (15 N·m)ATO ATO-PB-015 Single-Shaft Magnetic Particle Brake (15 N·m)ATO · CN · $388.23ATO ATO-PB-050 Single-Shaft Magnetic Particle Brake (50 N·m)ATO ATO-PB-050 Single-Shaft Magnetic Particle Brake (50 N·m)ATO · CN · $556.77ATO ATO-PB-100 Single-Shaft Magnetic Particle Brake (100 N·m)ATO ATO-PB-100 Single-Shaft Magnetic Particle Brake (100 N·m)ATO · CN · $1,038.46Mitsubishi ZKB-2.5XN Powder Brake (25 N·m)Mitsubishi ZKB-2.5XN Powder Brake (25 N·m)Mitsubishi Electric · JP · QuoteLanmec FZ25.K/F Magnetic Powder Brake (25 N·m)Lanmec FZ25.K/F Magnetic Powder Brake (25 N·m)Lanmec · CN · QuoteMagtrol HB-750M-2 Hysteresis Brake (5 N·m)Magtrol HB-750M-2 Hysteresis Brake (5 N·m)Magtrol · US · QuoteMagtrol HB-1750M-2 Hysteresis Brake (13 N·m)Magtrol HB-1750M-2 Hysteresis Brake (13 N·m)Magtrol · US · QuoteG-Plas FZ50-S Single-Shaft Magnetic Powder Brake (50 N·m)G-Plas FZ50-S Single-Shaft Magnetic Powder Brake (50 N·m)G-Plas · CN · $163

Sources

Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
