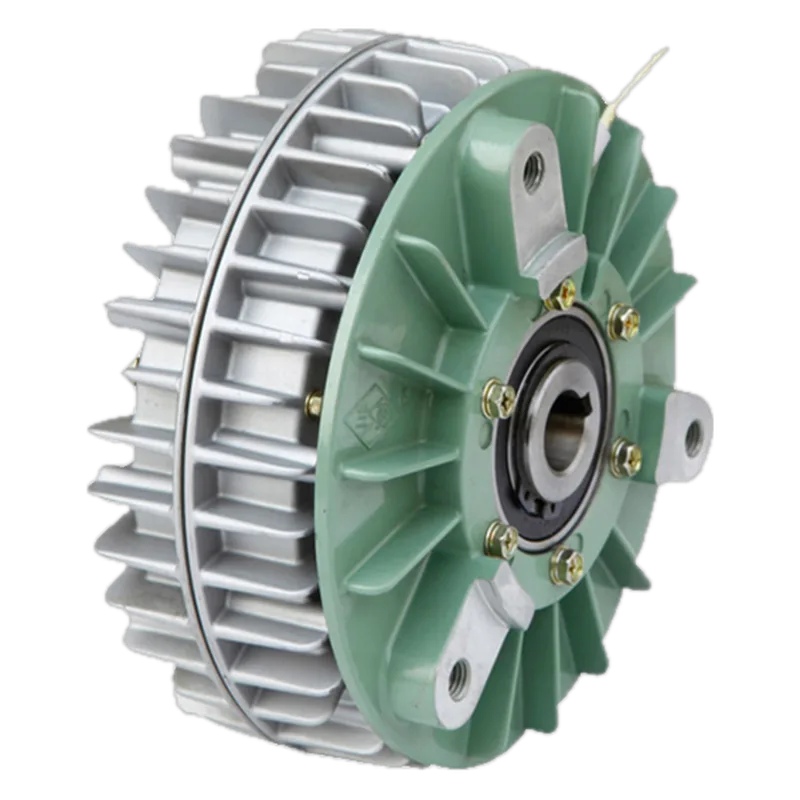

Lanmec FZ25.K/F Magnetic Powder Brake (25 N·m)
25 N·m hollow-shaft magnetic powder brake from Jiangsu Lanmec, a Chinese maker of dynamometers, torque sensors and powder/eddy-current loads; sold as a Mitsubishi substitute.
Specifications
| Rated torque | 25 N·m |
|---|---|
| Load type | Magnetic powder brake |
| Max speed | 1800 r/min allowable |
| Heat dissipation | 450 W slip power |
| Control | 24 VDC, 0.73 A |
Who makes it
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Listing price range US$500-1,200 covers the whole FZ series, so no SKU price recorded. Hollow-shaft coupling (bore d 20 mm H7 per table). Same listing table gives FZ6/12/50/100/200/400.K/F. Lanmec also builds powder-brake motor test benches. |
Equivalents from other makers
Works with
Sources
- https://lanlingjidian.en.made-in-china.com/product/LjyJFiNYwKkS/China-Fz25-K-F-Powder-Brake-with-Ce-Qualification-Can-Substitute-Mitsubishi-Products-Printing-Machine-Parts.htmlattributes + FZ.K/F series table: 25 N·m, 24 V, 0.73 A, 1800 r/min, 450 W slip power; MOQ, lead time
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
