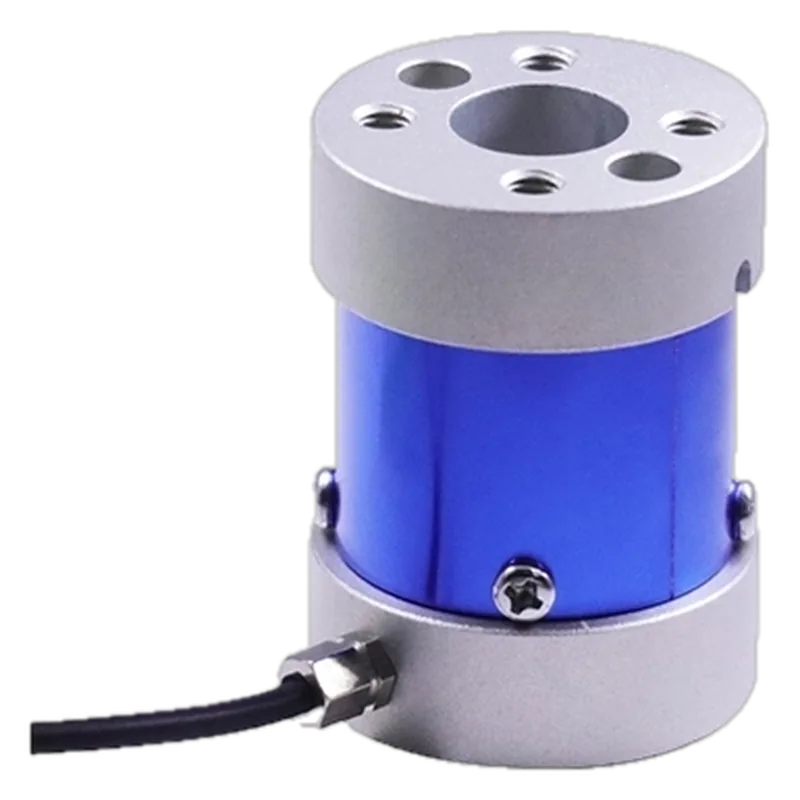

ATO Micro Reaction Torque Sensor, 10 N·m (ATO-TQS-S04 / ATO-DYJN-104)
ATO · MPN ATO-TQS-S04 (ATO-DYJN-104) 10 N·m · Maglev ID te-ato-tqs-s04-10nm
CN Maker in China, factory not confirmed unknown REPORTED
Small disc reaction sensor with 0.05% FS specs for low-torque joints; pairs with an HX711 or bridge amp.
Specifications
| Rated torque | 10 N·m (0.5–150 N·m options at base price) |
|---|---|
| Sensor type | Reaction static |
| Max speed | n/a (static) |
| Accuracy | 0.05% FS nonlinearity, hysteresis, repeatability |
| Output | 0–20 mV (2.0 mV/V); transmitter add-on +$81.27 for 4–20 mA/±5 V/±10 V |
| Encoder / speed | none |
Who makes it
MakerATO (ato.com)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Model code and spec match CALT DYJN-104 (same 0.05% FS, 2.0 mV/V, 150% safe overload); likely rebadged, not confirmed. |
Equivalents from other makers
Sources
- https://www.ato.com/micro-reaction-torque-sensor-0d5-nm-to-150-nmprice $175.93 base, ranges 0.5–150 N·m, accuracy, output, delivery 6–12 days
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
