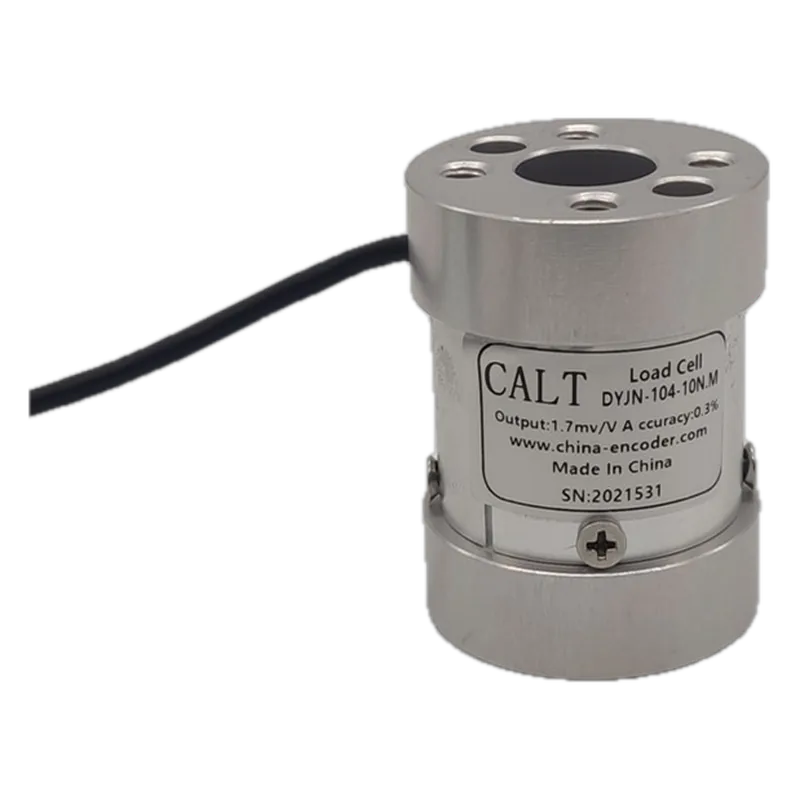

CALT DYJN-104 Micro Reaction Torque Sensor, 10 N·m
CALT · MPN DYJN-104 10 N·m · Maglev ID te-calt-dyjn-104-10nm
CN Maker in China, factory not confirmed unknown VERIFIED
Factory page for the compact disc reaction torque sensor (1–150 N·m) that ATO resells; good for locked-rotor Kt and stiffness on small joints.
Specifications
| Rated torque | 10 N·m (series 1–150 N·m) |
|---|---|
| Sensor type | Reaction static |
| Max speed | n/a (static) |
| Accuracy | 0.05% FS nonlinearity, hysteresis, repeatability |
| Output | 2.0 mV/V (350 Ω, 5–15 V excitation); 4–20 mA / 1–5 V via transmitter |
| Encoder / speed | none |
Who makes it
MakerCALT Sensor (caltsensor.com)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Priced equivalent: ATO-TQS-S04. |
Equivalents from other makers
Sources
- https://caltsensor.com/product/reaction-torque-sensor-dyjn-104-series/capacities, accuracy, mV/V, overload 150%/200%, image (10 N·m photo)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
