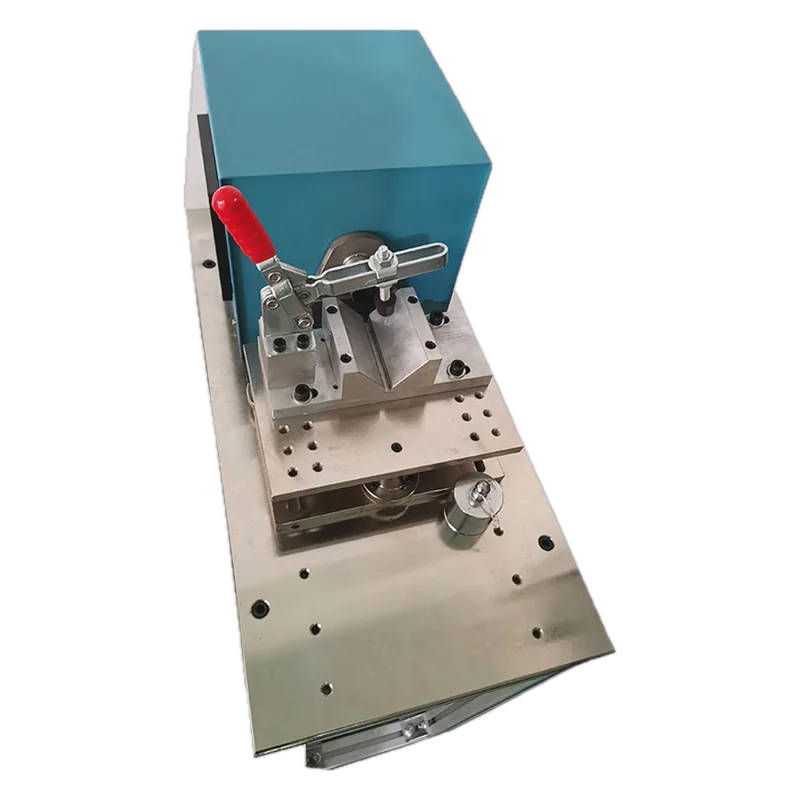

Changniu CNC100K S/E Hysteresis Dynamometer (10 N·m)
Changniu · MPN CNC100K S/E · Maglev ID te-changniu-cnc100k-se
CN Made in China unknown REPORTED
Chinese hysteresis dynamometer rated 10 N·m from Hangzhou Changniu, a Magtrol HD-style motor test bench at Chinese factory pricing.
Specifications
| Max torque | 10 N·m |
|---|---|
| Max speed | 8,000 rpm |
| Load type | Hysteresis brake (variant 'S/E' as printed) |
| Measures | Torque and speed with computer control, 0.5% or 0.2% accuracy grade; 1,500 W continuous / 2,000 W 5-min absorption; motor torque-speed characteristic curves |
Who makes it
MakerHangzhou Changniu Technology Co., Ltd.
Based inChina
RoleFactory
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 9031.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Listing price US$2,000-8,000 covers the whole CNC series, so no SKU price recorded. The listing title says 'Magnetic Particle Brake Dynamometers' but the URL, attributes and table are the CNC hysteresis dynamometer series. 'S' types need a low-temperature cooling-water tank, 'F' types an air-cooling device. Model printed as 'CNC100K S/E' in the table (likely S/F). |
Equivalents from other makers
Sources
- https://hzchangniu.en.made-in-china.com/product/OagrlFwoMPVB/China-High-Precision-Hysteresis-Brake-Dynamometer.htmlCNC series table (max torque, max speed, 5-min / continuous power), accuracy grade, price range, delivery
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
