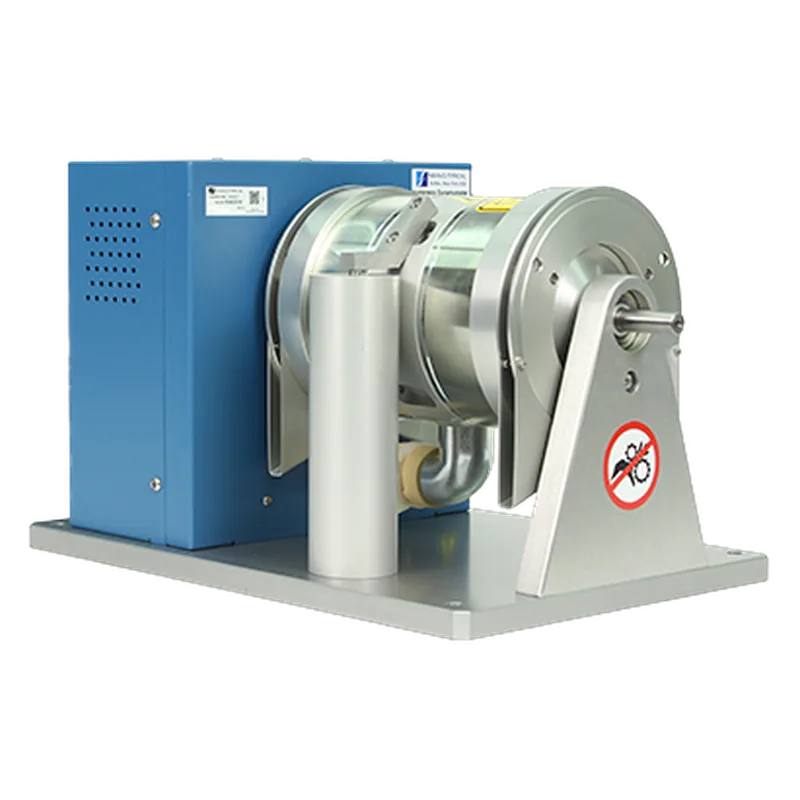

Magtrol HD-715-5C Hysteresis Dynamometer (6.2 N·m)
Magtrol · MPN HD-715-5C · Maglev ID te-magtrol-hd-715-5c
US Maker in United States, factory not confirmed unknown VERIFIED
Magtrol HD-series hysteresis dynamometer (brake plus torque measurement on a base plate) rated 6.2 N·m; the reference bench for motor torque-speed testing from free-run to locked rotor.
Specifications
| Max torque | 6.2 N·m |
|---|---|
| Max speed | 25,000 rpm |
| Load type | Hysteresis brake (blower-cooled, blower included) |
| Measures | Torque and speed, ±0.25% FS accuracy (size/configuration dependent); full motor ramp no-load to locked rotor; 3,000 W continuous / 3,400 W 5-min absorption. Torque-speed curves need a Magtrol controller (DSP7010/DSP7000) and M-TEST 7 software. |
Who makes it
MakerMagtrol, Inc.
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 9031.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Quote-only, no public price. Blower BL-001 (HD-715) / BL-002 (HD-815) included as standard per Magtrol. Controller and software are separate line items in Magtrol's system options table; for a geared joint, dyno torque limits you to the joint's motor side or a small joint. |
Equivalents from other makers
Sources
- https://www.magtrol.com/product/hysteresis-dynamometers-hd-series/HD spec table (max torque, max speed, 5-min and continuous power), ±0.25% FS, blower inclusion, system options
- https://www.magtrol.com/wp-content/uploads/HD-715-XCX-0XXXi.pdfmodel datasheet link from product page
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
