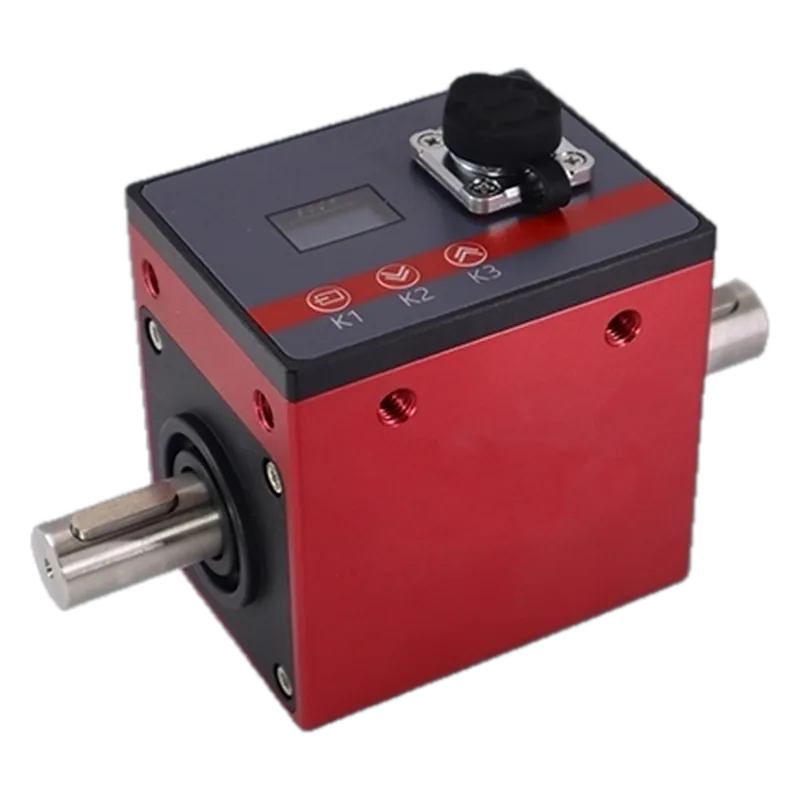

ATO Digital Rotary Torque Sensor with LCD, 20 N·m (ATO-TQS-D03 / DYN-200)
ATO · MPN ATO-TQS-D03 20 N·m · Maglev ID te-ato-tqs-d03-20nm
CN Maker in China, factory not confirmed unknown REPORTED
DYN-200-style rotary torque sensor with built-in display of torque, speed and power; the budget pick for joint torque-speed curves.
Specifications
| Rated torque | 20 N·m (10–100 N·m options at base price) |
|---|---|
| Sensor type | Rotary inline |
| Max speed | 8,000 rpm rated, 10,000 rpm max (≤500 N·m) |
| Accuracy | 0.1% FS nonlinearity, 0.03% FS hysteresis |
| Output | ±5 V, 0–10 V, 4–20 mA, RS485 or combos; 1 kHz response |
| Encoder / speed | 60 ppr speed (OC; 5 V TTL optional) |
Who makes it
MakerATO (ato.com)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | DYN-200 model name is used by several Chinese makers (CALT, Daysensor and others); this is ATO's listing. Some output options add cost; delivery stated 8–12 days. Page FAQ cites 120 ppr for the 300 N·m model. |
Equivalents from other makers
Sources
- https://www.ato.com/rotary-torque-sensor-10000-nmspec model ATO-TQS-DYN-200, price $939.15 base (no surcharge 10–100 N·m), speeds, accuracy, 60 ppr, LCD
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
