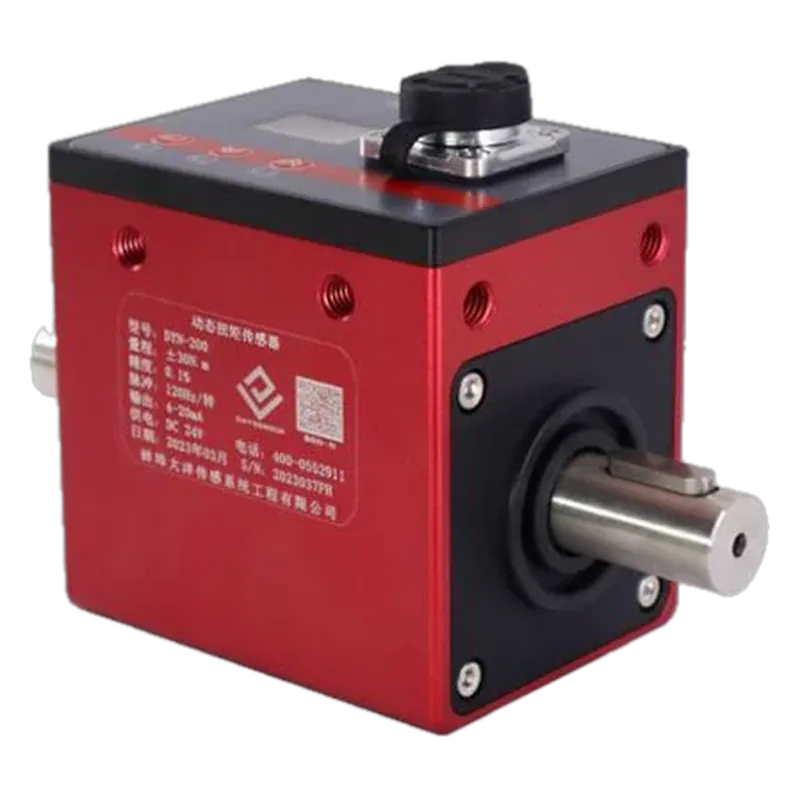

DAYSENSOR DYN-200 Rotary Torque Sensor with OLED Display
DAYSENSOR · MPN DYN-200 · Maglev ID te-daysensor-dyn-200
CN Maker in China, factory not confirmed unknown REPORTED
DYN-200 variant with built-in 128x64 OLED showing torque, speed and power, RS485 plus analog out at up to 1000 samples/s.
Specifications
| Rated torque | family up to ±20,000 N·m; range chosen at order |
|---|---|
| Sensor type | Rotary inline |
| Max speed | ≤15,000 rpm |
| Accuracy | 0.1% FS nonlinearity (hysteresis listed 0.5) |
| Output | RS485 + simultaneous voltage/current output; 500 or 1000 samples/s |
| Encoder / speed | unknown |
Who makes it
MakerDAYSENSOR
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.8085 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | daysensor.com lists only load cells, so the maker page was not found; source is a Korean distributor. DYN-200 name is shared with CALT/ATO. Encoder option from brief not confirmed on the page. |
Equivalents from other makers
Sources
- https://ksensors.co.kr/en/?p=45879Korean distributor (Ksensors) page: specs, OLED, RS485, image
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
